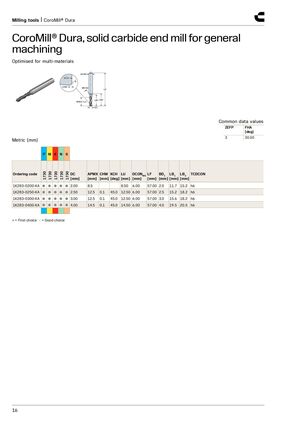

Milling tools | CoroMill® Dura CoroMill® Dura, solid carbide end mill for general machining​​ Optimised for multi-materials DCON KCH CHW BHTA2 LF LB1 LB2 APMX / LU DC Common data values ZEFP FHA [deg] 3 30.00 Metric (mm) P M K N S 1730 1730 1730 1730 1730 Ordering code DC APMX CHW KCH LU DCONMS LF BD 1 LB 1 LB 2 TCDCON _ _ _ [mm] [mm] [mm] [deg] [mm] [mm] [mm] [mm] [mm] [mm] 1K283-0200-XA ● ● ● ● ● 2.00 8.5 8.50 6.00 57.00 2.0 11.7 15.2 h6 1K283-0250-XA ● ● ● ● ● 2.50 12.5 0.1 45.0 12.50 6.00 57.00 2.5 15.2 18.2 h6 1K283-0300-XA ● ● ● ● ● 3.00 12.5 0.1 45.0 12.50 6.00 57.00 3.0 15.6 18.2 h6 1K283-0400-XA ● ● ● ● ● 4.00 14.5 0.1 45.0 14.50 6.00 57.00 4.0 19.5 20.5 h6 ● = First choice ○ = Good choice 16
