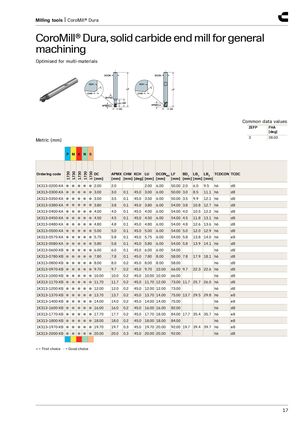

Milling tools | CoroMill® Dura CoroMill® Dura, solid carbide end mill for general machining​​ Optimised for multi-materials Common data values ZEFP FHA [deg] 3 38.00 Metric (mm) P M K N S 1730 1730 1730 1730 1730 Ordering code DC APMX CHW KCH LU DCONMS LF BD 1 LB 1 LB 2 TCDCON TCDC _ _ _ [mm] [mm] [mm] [deg] [mm] [mm] [mm] [mm] [mm] [mm] 1K313-0200-XA ● ● ● ● ● 2.00 2.0 2.00 6.00 50.00 2.0 6.0 9.5 h6 d8 1K313-0300-XA ● ● ● ● ● 3.00 3.0 0.1 45.0 3.00 6.00 50.00 3.0 8.5 11.1 h6 d8 1K313-0350-XA ● ● ● ● ● 3.50 3.5 0.1 45.0 3.50 6.00 50.00 3.5 9.9 12.1 h6 d8 1K313-0380-XA ● ● ● ● ● 3.80 3.8 0.1 45.0 3.80 6.00 54.00 3.8 10.8 12.7 h6 d8 1K313-0400-XA ● ● ● ● ● 4.00 4.0 0.1 45.0 4.00 6.00 54.00 4.0 10.5 12.2 h6 d8 1K313-0450-XA ● ● ● ● ● 4.50 4.5 0.1 45.0 4.50 6.00 54.00 4.5 11.8 13.1 h6 d8 1K313-0480-XA ● ● ● ● ● 4.80 4.8 0.1 45.0 4.80 6.00 54.00 4.8 12.6 13.6 h6 d8 1K313-0500-XA ● ● ● ● ● 5.00 5.0 0.1 45.0 5.00 6.00 54.00 5.0 12.0 12.9 h6 d8 1K313-0575-XA ● ● ● ● ● 5.75 5.8 0.1 45.0 5.75 6.00 54.00 5.8 13.8 14.0 h6 e8 1K313-0580-XA ● ● ● ● ● 5.80 5.8 0.1 45.0 5.80 6.00 54.00 5.8 13.9 14.1 h6 d8 1K313-0600-XB ● ● ● ● ● 6.00 6.0 0.1 45.0 6.00 6.00 54.00 h6 d8 1K313-0780-XB ● ● ● ● ● 7.80 7.8 0.1 45.0 7.80 8.00 58.00 7.8 17.9 18.1 h6 d8 1K313-0800-XB ● ● ● ● ● 8.00 8.0 0.2 45.0 8.00 8.00 58.00 h6 d8 1K313-0970-XB ● ● ● ● ● 9.70 9.7 0.2 45.0 9.70 10.00 66.00 9.7 22.3 22.6 h6 d8 1K313-1000-XB ● ● ● ● ● 10.00 10.0 0.2 45.0 10.00 10.00 66.00 h6 d8 1K313-1170-XB ● ● ● ● ● 11.70 11.7 0.2 45.0 11.70 12.00 73.00 11.7 25.7 26.0 h6 d8 1K313-1200-XB ● ● ● ● ● 12.00 12.0 0.2 45.0 12.00 12.00 73.00 h6 d8 1K313-1370-XB ● ● ● ● ● 13.70 13.7 0.2 45.0 13.70 14.00 75.00 13.7 29.5 29.8 h6 e8 1K313-1400-XB ● ● ● ● ● 14.00 14.0 0.2 45.0 14.00 14.00 75.00 h6 e8 1K313-1600-XB ● ● ● ● ● 16.00 16.0 0.2 45.0 16.00 16.00 82.00 h6 d8 1K313-1770-XB ● ● ● ● ● 17.70 17.7 0.2 45.0 17.70 18.00 84.00 17.7 35.4 35.7 h6 e8 1K313-1800-XB ● ● ● ● ● 18.00 18.0 0.2 45.0 18.00 18.00 84.00 h6 e8 1K313-1970-XB ● ● ● ● ● 19.70 19.7 0.3 45.0 19.70 20.00 92.00 19.7 39.4 39.7 h6 e8 1K313-2000-XB ● ● ● ● ● 20.00 20.0 0.3 45.0 20.00 20.00 92.00 h6 d8 ● = First choice ○ = Good choice 17
