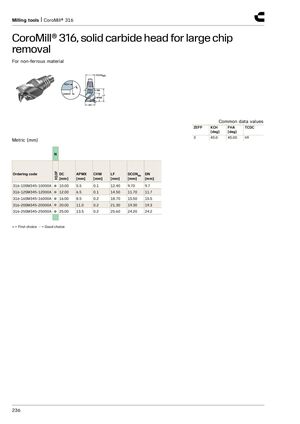

Milling tools | CoroMill® 316 CoroMill® 316, solid carbide head for large chip removal​​ For non-ferrous material Common data values ZEFP KCH FHA TCDC [deg] [deg] 3 45.0 45.00 h9 Metric (mm) N H10F Ordering code DC APMX CHW LF DCONMS DN [mm] [mm] [mm] [mm] [mm] [mm] 316-10SM345-10000A ● 10.00 5.5 0.1 12.40 9.70 9.7 316-12SM345-12000A ● 12.00 6.5 0.1 14.50 11.70 11.7 316-16SM345-16000A ● 16.00 8.5 0.2 18.70 15.50 15.5 316-20SM345-20000A ● 20.00 11.0 0.2 21.30 19.30 19.3 316-25SM345-25000A ● 25.00 13.5 0.2 25.60 24.20 24.2 ● = First choice ○ = Good choice 236
