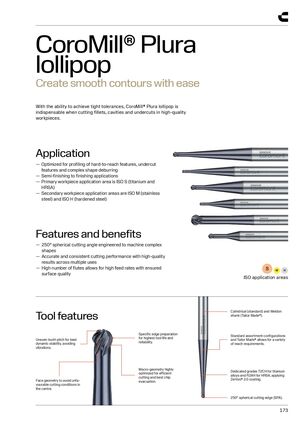

CoroMill® Plura lollipop Create smooth contours with ease With the ability to achieve tight tolerances, CoroMill® Plura lollipop is indispensable when cutting fillets, cavities and undercuts in high-quality workpieces. Application — Optimized for profiling of hard-to-reach features, undercut features and complex shape deburring — Semi-finishing to finishing applications — Primary workpiece application area is ISO S (titanium and HRSA) — Secondary workpiece application areas are ISO M (stainless steel) and ISO H (hardened steel) Features and benefits — 250° spherical cutting angle engineered to machine complex shapes — Accurate and consistent cutting performance with high-quality results across multiple uses — High number of flutes allows for high feed rates with ensured surface quality ISO application areas Tool features Cylindrical (standard) and Weldon shank (Tailor Made®). Specific edge preparation Standard assortment configurations Uneven tooth pitch for best for highest tool life and and Tailor Made® allows for a variety dynamic stability, avoiding reliability. of reach requirements. vibrations. Macro-geometry highly Dedicated grades T2CH for titanium optimized for efficient alloys and R2AH for HRSA, applying cutting and best chip Face geometry to avoid unfa- Zertivo® 2.0 coating. evacuation. vourable cutting conditions in the centre. 250° spherical cutting edge (SPA). 173
