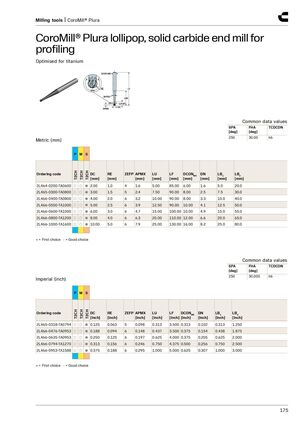

Milling tools | CoroMill® Plura CoroMill® Plura lollipop, solid carbide end mill for profiling​​ Optimised for titanium Common data values SPA FHA TCDCON [deg] [deg] 250 30.00 h6 Metric (mm) P M S T2CH T2CH T2CH Ordering code DC RE ZEFP APMX LU LF DCONMS DN LB 1 _ LB 2 _ [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 2L464-0200-TA0600 ○ ○ ● 2.00 1.0 4 1.6 5.00 85.00 6.00 1.6 5.0 20.0 2L465-0300-TA0800 ○ ○ ● 3.00 1.5 5 2.4 7.50 90.00 8.00 2.5 7.5 30.0 2L466-0400-TA0800 ○ ○ ● 4.00 2.0 6 3.2 10.00 90.00 8.00 3.3 10.0 40.0 2L466-0500-TA1000 ○ ○ ● 5.00 2.5 6 3.9 12.50 90.00 10.00 4.1 12.5 50.0 2L466-0600-TA1000 ○ ○ ● 6.00 3.0 6 4.7 15.00 100.00 10.00 4.9 15.0 55.0 2L466-0800-TA1200 ○ ○ ● 8.00 4.0 6 6.3 20.00 110.00 12.00 6.6 20.0 65.0 2L466-1000-TA1600 ○ ○ ● 10.00 5.0 6 7.9 25.00 130.00 16.00 8.2 25.0 80.0 ● = First choice ○ = Good choice Common data values SPA FHA TCDCON [deg] [deg] 250 30.000 h6 Imperial (inch) P M S T2CH T2CH T2CH Ordering code DC RE ZEFP APMX LU LF DCONMS DN LB 1 _ LB 2_ [inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] 2L465-0318-TA0794 ○ ○ ● 0.125 0.063 5 0.098 0.313 3.500 0.313 0.102 0.313 1.250 2L466-0476-TA0953 ○ ○ ● 0.188 0.094 6 0.148 0.437 3.500 0.375 0.154 0.438 1.875 2L466-0635-TA0953 ○ ○ ● 0.250 0.125 6 0.197 0.625 4.000 0.375 0.205 0.625 2.000 2L466-0794-TA1270 ○ ○ ● 0.313 0.156 6 0.246 0.750 4.375 0.500 0.256 0.750 2.500 2L466-0953-TA1588 ○ ○ ● 0.375 0.188 6 0.295 1.000 5.000 0.625 0.307 1.000 3.000 ● = First choice ○ = Good choice 175
