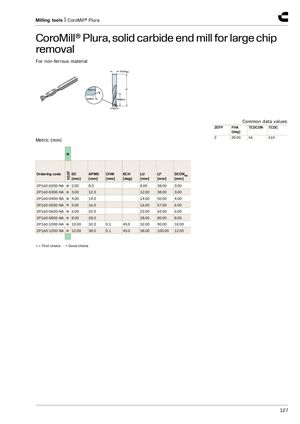

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for large chip removal​​ For non-ferrous material Common data values ZEFP FHA TCDCON TCDC [deg] 2 25.00 h6 h10 Metric (mm) N H10F Ordering code DC APMX CHW KCH LU LF DCONMS [mm] [mm] [mm] [deg] [mm] [mm] [mm] 2P160-0200-NA ● 2.00 8.0 8.00 38.00 3.00 2P160-0300-NA ● 3.00 12.0 12.00 38.00 3.00 2P160-0400-NA ● 4.00 14.0 14.00 50.00 4.00 2P160-0500-NA ● 5.00 16.0 16.00 57.00 6.00 2P160-0600-NA ● 6.00 22.0 22.00 65.00 6.00 2P160-0800-NA ● 8.00 28.0 28.00 80.00 8.00 2P160-1000-NA ● 10.00 32.0 0.1 45.0 32.00 90.00 10.00 2P160-1200-NA ● 12.00 38.0 0.1 45.0 38.00 100.00 12.00 ● = First choice ○ = Good choice 127
