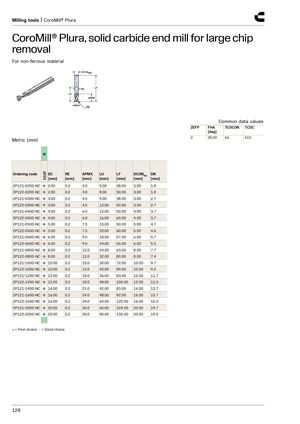

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for large chip removal​​ For non-ferrous material Common data values ZEFP FHA TCDCON TCDC [deg] 2 25.00 h6 h10 Metric (mm) N H10F Ordering code DC RE APMX LU LF DCONMS DN [mm] [mm] [mm] [mm] [mm] [mm] [mm] 2P121-0200-NC ● 2.00 0.2 3.0 5.00 38.00 3.00 1.8 2P122-0200-NC ● 2.00 0.2 3.0 8.00 50.00 3.00 1.8 2P121-0300-NC ● 3.00 0.2 4.5 9.00 38.00 3.00 2.7 2P122-0300-NC ● 3.00 0.2 4.5 12.00 50.00 3.00 2.7 2P121-0400-NC ● 4.00 0.2 6.0 12.00 50.00 4.00 3.7 2P122-0400-NC ● 4.00 0.2 6.0 16.00 60.00 4.00 3.7 2P121-0500-NC ● 5.00 0.2 7.5 15.00 50.00 5.00 4.7 2P122-0500-NC ● 5.00 0.2 7.5 20.00 60.00 5.00 4.6 2P121-0600-NC ● 6.00 0.2 9.0 18.00 57.00 6.00 5.7 2P122-0600-NC ● 6.00 0.2 9.0 24.00 65.00 6.00 5.5 2P121-0800-NC ● 8.00 0.2 12.0 24.00 63.00 8.00 7.7 2P122-0800-NC ● 8.00 0.2 12.0 32.00 80.00 8.00 7.4 2P121-1000-NC ● 10.00 0.2 15.0 30.00 72.00 10.00 9.7 2P122-1000-NC ● 10.00 0.2 15.0 40.00 89.00 10.00 9.2 2P121-1200-NC ● 12.00 0.2 18.0 36.00 83.00 12.00 11.7 2P122-1200-NC ● 12.00 0.2 18.0 48.00 100.00 12.00 11.0 2P121-1400-NC ● 14.00 0.2 21.0 42.00 83.00 14.00 13.7 2P121-1600-NC ● 16.00 0.2 24.0 48.00 92.00 16.00 15.7 2P122-1600-NC ● 16.00 0.2 24.0 64.00 120.00 16.00 15.0 2P121-2000-NC ● 20.00 0.2 30.0 60.00 104.00 20.00 19.7 2P122-2000-NC ● 20.00 0.2 30.0 80.00 150.00 20.00 19.0 ● = First choice ○ = Good choice 128
