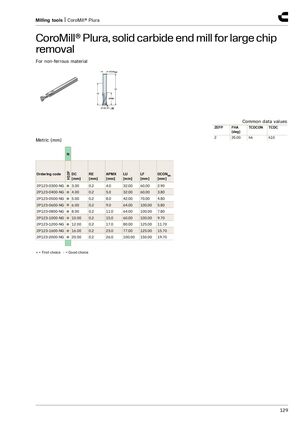

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for large chip removal​​ For non-ferrous material Common data values ZEFP FHA TCDCON TCDC [deg] 2 25.00 h6 h10 Metric (mm) N H10F Ordering code DC RE APMX LU LF DCONMS [mm] [mm] [mm] [mm] [mm] [mm] 2P123-0300-NG ● 3.00 0.2 4.0 32.00 60.00 2.90 2P123-0400-NG ● 4.00 0.2 5.0 32.00 60.00 3.80 2P123-0500-NG ● 5.00 0.2 8.0 42.00 70.00 4.80 2P123-0600-NG ● 6.00 0.2 9.0 64.00 100.00 5.80 2P123-0800-NG ● 8.00 0.2 11.0 64.00 100.00 7.80 2P123-1000-NG ● 10.00 0.2 15.0 60.00 100.00 9.70 2P123-1200-NG ● 12.00 0.2 17.0 80.00 125.00 11.70 2P123-1600-NG ● 16.00 0.2 23.0 77.00 125.00 15.70 2P123-2000-NG ● 20.00 0.2 26.0 100.00 150.00 19.70 ● = First choice ○ = Good choice 129
