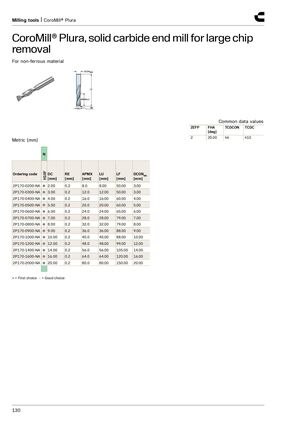

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for large chip removal​​ For non-ferrous material Common data values ZEFP FHA TCDCON TCDC [deg] 2 25.00 h6 h10 Metric (mm) N H10F Ordering code DC RE APMX LU LF DCONMS [mm] [mm] [mm] [mm] [mm] [mm] 2P170-0200-NA ● 2.00 0.2 8.0 8.00 50.00 3.00 2P170-0300-NA ● 3.00 0.2 12.0 12.00 50.00 3.00 2P170-0400-NA ● 4.00 0.2 16.0 16.00 60.00 4.00 2P170-0500-NA ● 5.00 0.2 20.0 20.00 60.00 5.00 2P170-0600-NA ● 6.00 0.2 24.0 24.00 65.00 6.00 2P170-0700-NA ● 7.00 0.2 28.0 28.00 79.00 7.00 2P170-0800-NA ● 8.00 0.2 32.0 32.00 79.00 8.00 2P170-0900-NA ● 9.00 0.2 36.0 36.00 88.00 9.00 2P170-1000-NA ● 10.00 0.2 40.0 40.00 88.00 10.00 2P170-1200-NA ● 12.00 0.2 48.0 48.00 99.00 12.00 2P170-1400-NA ● 14.00 0.2 56.0 56.00 105.00 14.00 2P170-1600-NA ● 16.00 0.2 64.0 64.00 120.00 16.00 2P170-2000-NA ● 20.00 0.2 80.0 80.00 150.00 20.00 ● = First choice ○ = Good choice 130
