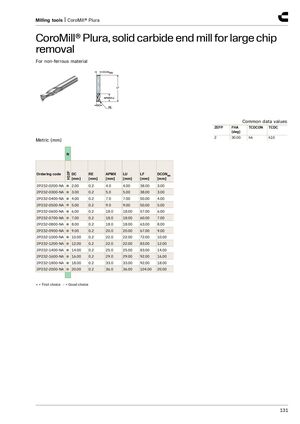

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for large chip removal​​ For non-ferrous material Common data values ZEFP FHA TCDCON TCDC [deg] 2 30.00 h6 h10 Metric (mm) N H10F Ordering code DC RE APMX LU LF DCONMS [mm] [mm] [mm] [mm] [mm] [mm] 2P232-0200-NA ● 2.00 0.2 4.0 4.00 38.00 3.00 2P232-0300-NA ● 3.00 0.2 5.0 5.00 38.00 3.00 2P232-0400-NA ● 4.00 0.2 7.0 7.00 50.00 4.00 2P232-0500-NA ● 5.00 0.2 9.0 9.00 50.00 5.00 2P232-0600-NA ● 6.00 0.2 18.0 18.00 57.00 6.00 2P232-0700-NA ● 7.00 0.2 18.0 18.00 60.00 7.00 2P232-0800-NA ● 8.00 0.2 18.0 18.00 63.00 8.00 2P232-0900-NA ● 9.00 0.2 20.0 20.00 67.00 9.00 2P232-1000-NA ● 10.00 0.2 22.0 22.00 72.00 10.00 2P232-1200-NA ● 12.00 0.2 22.0 22.00 83.00 12.00 2P232-1400-NA ● 14.00 0.2 25.0 25.00 83.00 14.00 2P232-1600-NA ● 16.00 0.2 29.0 29.00 92.00 16.00 2P232-1800-NA ● 18.00 0.2 33.0 33.00 92.00 18.00 2P232-2000-NA ● 20.00 0.2 36.0 36.00 104.00 20.00 ● = First choice ○ = Good choice 131
