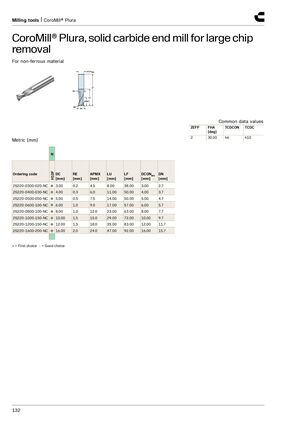

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for large chip removal​​ For non-ferrous material Common data values ZEFP FHA TCDCON TCDC [deg] 2 30.00 h6 h10 Metric (mm) N H10F Ordering code DC RE APMX LU LF DCONMS DN [mm] [mm] [mm] [mm] [mm] [mm] [mm] 2S220-0300-020-NC ● 3.00 0.2 4.5 8.00 38.00 3.00 2.7 2S220-0400-030-NC ● 4.00 0.3 6.0 11.00 50.00 4.00 3.7 2S220-0500-050-NC ● 5.00 0.5 7.5 14.00 50.00 5.00 4.7 2S220-0600-100-NC ● 6.00 1.0 9.0 17.00 57.00 6.00 5.7 2S220-0800-100-NC ● 8.00 1.0 12.0 23.00 63.00 8.00 7.7 2S220-1000-150-NC ● 10.00 1.5 15.0 29.00 72.00 10.00 9.7 2S220-1200-150-NC ● 12.00 1.5 18.0 35.00 83.00 12.00 11.7 2S220-1600-200-NC ● 16.00 2.0 24.0 47.00 92.00 16.00 15.7 ● = First choice ○ = Good choice 132
