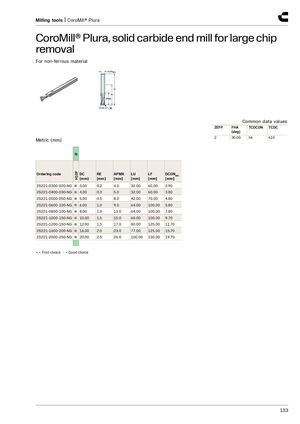

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for large chip removal​​ For non-ferrous material Common data values ZEFP FHA TCDCON TCDC [deg] 2 30.00 h6 h10 Metric (mm) N H10F Ordering code DC RE APMX LU LF DCONMS [mm] [mm] [mm] [mm] [mm] [mm] 2S221-0300-020-NG ● 3.00 0.2 4.0 32.00 60.00 2.90 2S221-0400-030-NG ● 4.00 0.3 5.0 32.00 60.00 3.80 2S221-0500-050-NG ● 5.00 0.5 8.0 42.00 70.00 4.80 2S221-0600-100-NG ● 6.00 1.0 9.0 64.00 100.00 5.80 2S221-0800-100-NG ● 8.00 1.0 13.0 64.00 100.00 7.80 2S221-1000-150-NG ● 10.00 1.5 15.0 60.00 100.00 9.70 2S221-1200-150-NG ● 12.00 1.5 17.0 80.00 125.00 11.70 2S221-1600-200-NG ● 16.00 2.0 23.0 77.00 125.00 15.70 2S221-2000-250-NG ● 20.00 2.5 26.0 100.00 150.00 19.70 ● = First choice ○ = Good choice 133
