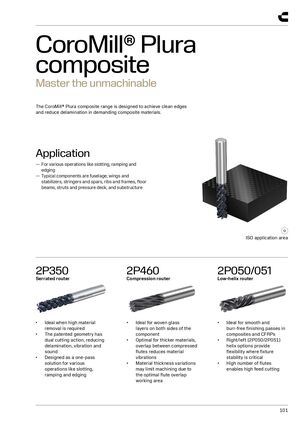

CoroMill® Plura composite Master the unmachinable The CoroMill® Plura composite range is designed to achieve clean edges and reduce delamination in demanding composite materials. Application — For various operations like slotting, ramping and edging — Typical components are fuselage, wings and stabilizers, stringers and spars, ribs and frames, floor beams, struts and pressure deck, and substructure ISO application area 2P350 2P460 2P050/051 Serrated router Compression router Low-helix router • Ideal when high material • Ideal for woven glass • Ideal for smooth and removal is required layers on both sides of the burr-free finishing passes in • The patented geometry has component composites and CFRPs dual cutting action, reducing • Optimal for thicker materials, • Right/left (2P050/2P051) delamination, vibration and overlap between compressed helix options provide sound flutes reduces material flexibility where fixture • Designed as a one-pass vibrations stability is critical solution for various • Material thickness variations • High number of flutes operations like slotting, may limit machining due to enables high feed cutting ramping and edging the optimal flute overlap working area 101
