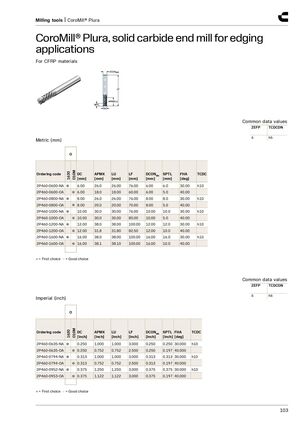

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for edging applications​​ For CFRP materials Common data values ZEFP TCDCON 6 h6 Metric (mm) O O10M 1630 Ordering code DC APMX LU LF DCONMS SPTL FHA TCDC [mm] [mm] [mm] [mm] [mm] [mm] [deg] 2P460-0600-NA ● 6.00 26.0 26.00 76.00 6.00 6.0 30.00 h10 2P460-0600-OA ● 6.00 18.0 18.00 60.00 6.00 5.0 40.00 2P460-0800-NA ● 8.00 26.0 26.00 76.00 8.00 8.0 30.00 h10 2P460-0800-OA ● 8.00 20.0 20.00 70.00 8.00 5.0 40.00 2P460-1000-NA ● 10.00 30.0 30.00 76.00 10.00 10.0 30.00 h10 2P460-1000-OA ● 10.00 30.0 30.00 80.00 10.00 5.0 40.00 2P460-1200-NA ● 12.00 38.0 38.00 100.00 12.00 12.0 30.00 h10 2P460-1200-OA ● 12.00 31.8 31.80 82.50 12.00 10.0 40.00 2P460-1600-NA ● 16.00 38.0 38.00 100.00 16.00 16.0 30.00 h10 2P460-1600-OA ● 16.00 38.1 38.10 100.00 16.00 10.0 40.00 ● = First choice ○ = Good choice Common data values ZEFP TCDCON 6 h6 Imperial (inch) O O10M 1630 Ordering code DC APMX LU LF DCONMS SPTL FHA TCDC [inch] [inch] [inch] [inch] [inch] [inch] [deg] 2P460-0635-NA ● 0.250 1.000 1.000 3.000 0.250 0.250 30.000 h10 2P460-0635-OA ● 0.250 0.752 0.752 2.500 0.250 0.197 40.000 2P460-0794-NA ● 0.313 1.000 1.000 3.000 0.313 0.313 30.000 h10 2P460-0794-OA ● 0.313 0.752 0.752 2.500 0.313 0.197 40.000 2P460-0952-NA ● 0.375 1.250 1.250 3.000 0.375 0.375 30.000 h10 2P460-0953-OA ● 0.375 1.122 1.122 3.000 0.375 0.197 40.000 ● = First choice ○ = Good choice 103
