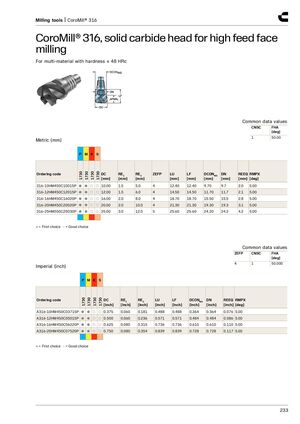

Milling tools | CoroMill® 316 CoroMill® 316, solid carbide head for high feed face milling​​ For multi-material with hardness ≤ 48 HRc Common data values CNSC FHA [deg] 1 50.00 Metric (mm) P M K S 1730 1730 1730 1730 Ordering code DC RE 1 _ RE 2 _ ZEFP LU LF DCONMS DN REEQ RMPX [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [deg] 316-10HM450C10015P ● ● ○ ○ 10.00 1.5 5.0 4 12.40 12.40 9.70 9.7 2.0 5.00 316-12HM450C12015P ● ● ○ ○ 12.00 1.5 6.0 4 14.50 14.50 11.70 11.7 2.1 5.00 316-16HM450C16020P ● ● ○ ○ 16.00 2.0 8.0 4 18.70 18.70 15.50 15.5 2.8 5.00 316-20HM450C20020P ● ● ○ ○ 20.00 2.0 10.0 4 21.30 21.30 19.30 19.3 3.1 5.00 316-25HM550C25030P ● ● ○ ○ 25.00 3.0 12.0 5 25.60 25.60 24.20 24.2 4.2 5.00 ● = First choice ○ = Good choice Common data values ZEFP CNSC FHA [deg] 4 1 50.000 Imperial (inch) P M K S 1730 1730 1730 1730 Ordering code DC RE 1 _ RE 2 _ LU LF DCONMS DN REEQ RMPX [inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] [deg] A316-10HM450C03715P ● ● ○ ○ 0.375 0.060 0.181 0.488 0.488 0.364 0.364 0.076 5.00 A316-12HM450C05015P ● ● ○ ○ 0.500 0.060 0.236 0.571 0.571 0.484 0.484 0.086 5.00 A316-16HM450C06220P ● ● ○ ○ 0.625 0.080 0.315 0.736 0.736 0.610 0.610 0.110 5.00 A316-20HM450C07520P ● ● ○ ○ 0.750 0.080 0.354 0.839 0.839 0.728 0.728 0.117 5.00 ● = First choice ○ = Good choice 233
