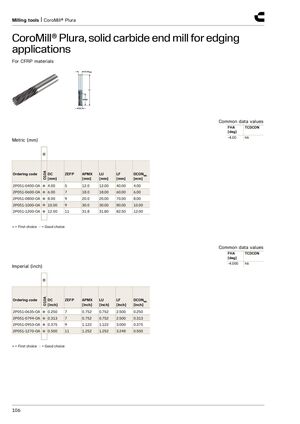

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for edging applications​​ For CFRP materials Common data values FHA TCDCON [deg] -4.00 h6 Metric (mm) O O10A Ordering code DC ZEFP APMX LU LF DCONMS [mm] [mm] [mm] [mm] [mm] 2P051-0400-OA ● 4.00 5 12.0 12.00 40.00 4.00 2P051-0600-OA ● 6.00 7 18.0 18.00 60.00 6.00 2P051-0800-OA ● 8.00 9 20.0 20.00 70.00 8.00 2P051-1000-OA ● 10.00 9 30.0 30.00 80.00 10.00 2P051-1200-OA ● 12.00 11 31.8 31.80 82.50 12.00 ● = First choice ○ = Good choice Common data values FHA TCDCON [deg] -4.000 h6 Imperial (inch) O O10A Ordering code DC ZEFP APMX LU LF DCONMS [inch] [inch] [inch] [inch] [inch] 2P051-0635-OA ● 0.250 7 0.752 0.752 2.500 0.250 2P051-0794-OA ● 0.313 7 0.752 0.752 2.500 0.313 2P051-0953-OA ● 0.375 9 1.122 1.122 3.000 0.375 2P051-1270-OA ● 0.500 11 1.252 1.252 3.248 0.500 ● = First choice ○ = Good choice 106
