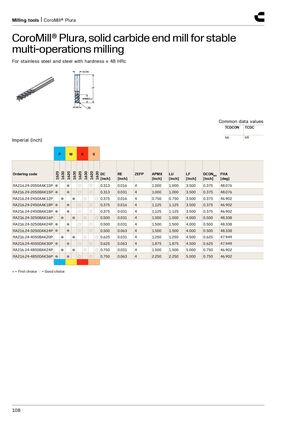

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for stable multi-operations milling​​ For stainless steel and steel with hardness ≤ 48 HRc Common data values TCDCON TCDC h6 h9 Imperial (inch) P M K S 1620 1630 1620 1630 1620 1630 1620 1630 Ordering code DC RE ZEFP APMX LU LF DCONMS FHA [inch] [inch] [inch] [inch] [inch] [inch] [deg] RA216.24-2050AAK15P ● ● ○ ○ 0.313 0.016 4 1.000 1.000 3.500 0.375 48.076 RA216.24-2050BAK15P ● ● ○ ○ 0.313 0.031 4 1.000 1.000 3.500 0.375 48.076 RA216.24-2450AAK12P ● ● ○ ○ 0.375 0.016 4 0.750 0.750 3.500 0.375 46.902 RA216.24-2450AAK18P ● ● ○ ○ 0.375 0.016 4 1.125 1.125 3.500 0.375 46.902 RA216.24-2450BAK18P ● ● ○ ○ 0.375 0.031 4 1.125 1.125 3.500 0.375 46.902 RA216.24-3250BAK16P ● ● ○ ○ 0.500 0.031 4 1.000 1.000 4.000 0.500 48.338 RA216.24-3250BAK24P ● ● ○ ○ 0.500 0.031 4 1.500 1.500 4.000 0.500 48.338 RA216.24-3250DAK24P ● ● ○ ○ 0.500 0.063 4 1.500 1.500 4.000 0.500 48.338 RA216.24-4050BAK20P ● ● ○ ○ 0.625 0.031 4 1.250 1.250 4.500 0.625 47.949 RA216.24-4050DAK30P ● ● ○ ○ 0.625 0.063 4 1.875 1.875 4.500 0.625 47.949 RA216.24-4850BAK24P ● ● ○ ○ 0.750 0.031 4 1.500 1.500 5.000 0.750 46.902 RA216.24-4850DAK36P ● ● ○ ○ 0.750 0.063 4 2.250 2.250 5.000 0.750 46.902 ● = First choice ○ = Good choice 108
