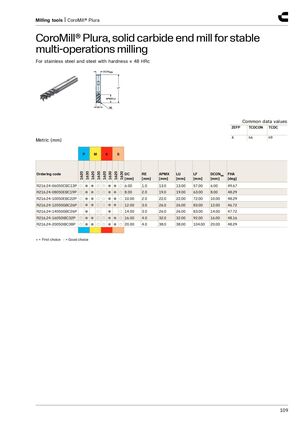

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for stable multi-operations milling​​ For stainless steel and steel with hardness ≤ 48 HRc Common data values ZEFP TCDCON TCDC 4 h6 h9 Metric (mm) P M K S 1620 1630 1620 1630 1620 1630 1620 1630 Ordering code DC RE APMX LU LF DCONMS FHA [mm] [mm] [mm] [mm] [mm] [mm] [deg] R216.24-06050CBC13P ○ ● ● ○ ○ ● ● ○ 6.00 1.0 13.0 13.00 57.00 6.00 49.67 R216.24-08050EBC19P ○ ● ● ○ ○ ● ● ○ 8.00 2.0 19.0 19.00 63.00 8.00 48.29 R216.24-10050EBC22P ○ ● ● ○ ○ ● ● ○ 10.00 2.0 22.0 22.00 72.00 10.00 48.29 R216.24-12050GBC26P ○ ● ● ○ ○ ● ● ○ 12.00 3.0 26.0 26.00 83.00 12.00 46.72 R216.24-14050GBC26P ● ○ ● ○ 14.00 3.0 26.0 26.00 83.00 14.00 47.72 R216.24-16050IBC32P ○ ● ● ○ ○ ● ● ○ 16.00 4.0 32.0 32.00 92.00 16.00 48.16 R216.24-20050IBC38P ○ ● ● ○ ○ ● ● ○ 20.00 4.0 38.0 38.00 104.00 20.00 48.29 ● = First choice ○ = Good choice 109
