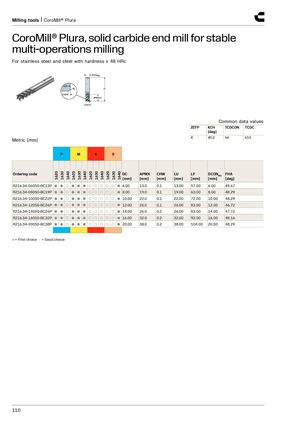

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for stable multi-operations milling​​ For stainless steel and steel with hardness ≤ 48 HRc Common data values ZEFP KCH TCDCON TCDC [deg] 4 45.0 h6 h10 Metric (mm) P M K S 1620 1630 1640 1620 1630 1640 1620 1630 1640 1620 1630 1640 Ordering code DC APMX CHW LU LF DCONMS FHA [mm] [mm] [mm] [mm] [mm] [mm] [deg] R216.34-06050-BC13P ● ● ○ ● ● ● ○ ○ ○ ○ ○ ● 6.00 13.0 0.1 13.00 57.00 6.00 49.67 R216.34-08050-BC19P ● ● ○ ● ● ● ○ ○ ○ ○ ○ ● 8.00 19.0 0.1 19.00 63.00 8.00 48.29 R216.34-10050-BC22P ● ● ○ ● ● ● ○ ○ ○ ○ ○ ● 10.00 22.0 0.1 22.00 72.00 10.00 48.29 R216.34-12050-BC26P ● ● ○ ● ● ● ○ ○ ○ ○ ○ ● 12.00 26.0 0.1 26.00 83.00 12.00 46.72 R216.34-14050-BC26P ● ● ○ ● ● ● ○ ○ ○ ○ ○ ● 14.00 26.0 0.2 26.00 83.00 14.00 47.72 R216.34-16050-BC32P ● ● ○ ● ● ● ○ ○ ○ ○ ○ ● 16.00 32.0 0.2 32.00 92.00 16.00 48.16 R216.34-20050-BC38P ● ● ○ ● ● ● ○ ○ ○ ○ ○ ● 20.00 38.0 0.2 38.00 104.00 20.00 48.29 ● = First choice ○ = Good choice 110
