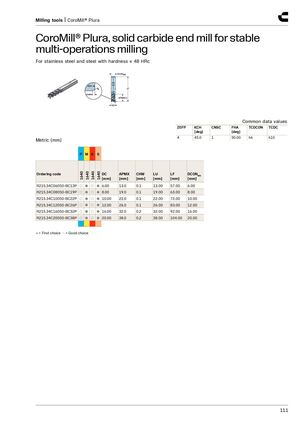

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for stable multi-operations milling​​ For stainless steel and steel with hardness ≤ 48 HRc Common data values ZEFP KCH CNSC FHA TCDCON TCDC [deg] [deg] 4 45.0 1 50.00 h6 h10 Metric (mm) P M K S 1640 1640 1640 1640 Ordering code DC APMX CHW LU LF DCONMS [mm] [mm] [mm] [mm] [mm] [mm] R215.34C06050-BC13P ○ ● ○ ● 6.00 13.0 0.1 13.00 57.00 6.00 R215.34C08050-BC19P ○ ● ○ ● 8.00 19.0 0.1 19.00 63.00 8.00 R215.34C10050-BC22P ○ ● ○ ● 10.00 22.0 0.1 22.00 72.00 10.00 R215.34C12050-BC26P ○ ● ○ ● 12.00 26.0 0.1 26.00 83.00 12.00 R215.34C16050-BC32P ○ ● ○ ● 16.00 32.0 0.2 32.00 92.00 16.00 R215.34C20050-BC38P ○ ● ○ ● 20.00 38.0 0.2 38.00 104.00 20.00 ● = First choice ○ = Good choice 111
