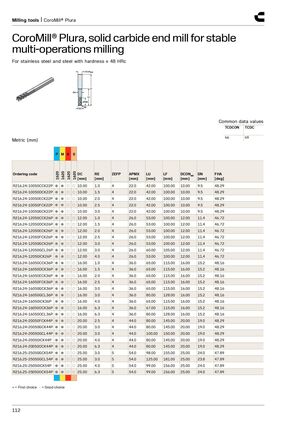

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for stable multi-operations milling​​ For stainless steel and steel with hardness ≤ 48 HRc Common data values TCDCON TCDC h6 h9 Metric (mm) P M K S 1620 1620 1620 1620 Ordering code DC RE ZEFP APMX LU LF DCONMS DN FHA [mm] [mm] [mm] [mm] [mm] [mm] [mm] [deg] R216.24-10050CCK22P ● ● ○ ○ 10.00 1.0 4 22.0 42.00 100.00 10.00 9.5 48.29 R216.24-10050DCK22P ● ● ○ ○ 10.00 1.5 4 22.0 42.00 100.00 10.00 9.5 48.29 R216.24-10050ECK22P ● ● ○ ○ 10.00 2.0 4 22.0 42.00 100.00 10.00 9.5 48.29 R216.24-10050FCK22P ● ● ○ ○ 10.00 2.5 4 22.0 42.00 100.00 10.00 9.5 48.29 R216.24-10050GCK22P ● ● ○ ○ 10.00 3.0 4 22.0 42.00 100.00 10.00 9.5 48.29 R216.24-12050CCK26P ● ● ○ ○ 12.00 1.0 4 26.0 53.00 100.00 12.00 11.4 46.72 R216.24-12050DCK26P ● ● ○ ○ 12.00 1.5 4 26.0 53.00 100.00 12.00 11.4 46.72 R216.24-12050ECK26P ● ● ○ ○ 12.00 2.0 4 26.0 53.00 100.00 12.00 11.4 46.72 R216.24-12050FCK26P ● ● ○ ○ 12.00 2.5 4 26.0 53.00 100.00 12.00 11.4 46.72 R216.24-12050GCK26P ● ● ○ ○ 12.00 3.0 4 26.0 53.00 100.00 12.00 11.4 46.72 R216.24-12050GCL26P ● ● ○ ○ 12.00 3.0 4 26.0 60.00 105.00 12.00 11.4 46.72 R216.24-12050ICK26P ● ● ○ ○ 12.00 4.0 4 26.0 53.00 100.00 12.00 11.4 46.72 R216.24-16050CCK36P ● ● ○ ○ 16.00 1.0 4 36.0 65.00 115.00 16.00 15.2 48.16 R216.24-16050DCK36P ● ● ○ ○ 16.00 1.5 4 36.0 65.00 115.00 16.00 15.2 48.16 R216.24-16050ECK36P ● ● ○ ○ 16.00 2.0 4 36.0 65.00 115.00 16.00 15.2 48.16 R216.24-16050FCK36P ● ● ○ ○ 16.00 2.5 4 36.0 65.00 115.00 16.00 15.2 48.16 R216.24-16050GCK36P ● ● ○ ○ 16.00 3.0 4 36.0 65.00 115.00 16.00 15.2 48.16 R216.24-16050GCL36P ● ● ○ ○ 16.00 3.0 4 36.0 80.00 128.00 16.00 15.2 48.16 R216.24-16050ICK36P ● ● ○ ○ 16.00 4.0 4 36.0 65.00 115.00 16.00 15.2 48.16 R216.24-16050OCK36P ● ● ○ ○ 16.00 6.3 4 36.0 67.00 115.00 16.00 15.2 48.16 R216.24-16050OCL36P ● ● ○ ○ 16.00 6.3 4 36.0 80.00 128.00 16.00 15.2 48.16 R216.24-20050FCK44P ● ● ○ ○ 20.00 2.5 4 44.0 80.00 145.00 20.00 19.0 48.29 R216.24-20050GCK44P ● ● ○ ○ 20.00 3.0 4 44.0 80.00 145.00 20.00 19.0 48.29 R216.24-20050GCL44P ● ● ○ ○ 20.00 3.0 4 44.0 100.00 150.00 20.00 19.0 48.29 R216.24-20050ICK44P ● ● ○ ○ 20.00 4.0 4 44.0 80.00 145.00 20.00 19.0 48.29 R216.24-20050OCK44P ● ● ○ ○ 20.00 6.3 4 44.0 80.00 145.00 20.00 19.0 48.29 R216.25-25050GCK54P ● ● ○ ○ 25.00 3.0 5 54.0 98.00 155.00 25.00 24.0 47.89 R216.25-25050GCL54P ● ● ○ ○ 25.00 3.0 5 54.0 125.00 181.00 25.00 23.8 47.89 R216.25-25050ICK54P ● ● ○ ○ 25.00 4.0 5 54.0 99.00 156.00 25.00 24.0 47.89 R216.25-25050OCK54P ● ● ○ ○ 25.00 6.3 5 54.0 99.00 156.00 25.00 24.0 47.89 ● = First choice ○ = Good choice 112
