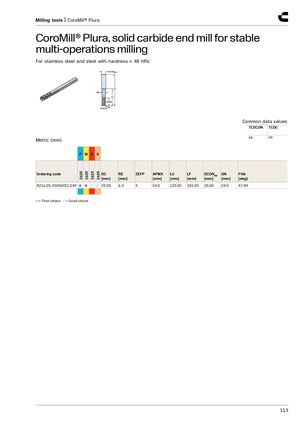

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for stable multi-operations milling​​ For stainless steel and steel with hardness ≤ 48 HRc Common data values TCDCON TCDC h6 h9 Metric (mm) P M K S 1620 1620 1620 1620 Ordering code DC RE ZEFP APMX LU LF DCONMS DN FHA [mm] [mm] [mm] [mm] [mm] [mm] [mm] [deg] R216.25-25050OCL54P ● ● ○ ○ 25.00 6.3 5 54.0 125.00 181.00 25.00 24.0 47.89 ● = First choice ○ = Good choice 113
