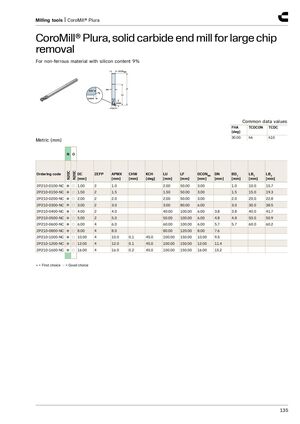

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for large chip removal​​ For non-ferrous material with silicon content 9% Common data values FHA TCDCON TCDC [deg] 30.00 h6 h10 Metric (mm) N O N20C N20C Ordering code DC ZEFP APMX CHW KCH LU LF DCONMS DN BD 1 _ LB 1 _ LB 2 _ [mm] [mm] [mm] [deg] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 2P210-0100-NC ● ○ 1.00 2 1.0 2.00 50.00 3.00 1.0 10.0 15.7 2P210-0150-NC ● ○ 1.50 2 1.5 1.50 50.00 3.00 1.5 15.0 19.3 2P210-0200-NC ● ○ 2.00 2 2.0 2.00 50.00 3.00 2.0 20.0 22.8 2P210-0300-NC ● ○ 3.00 2 3.0 3.00 80.00 6.00 3.0 30.0 38.5 2P210-0400-NC ● ○ 4.00 2 4.0 40.00 100.00 6.00 3.8 3.8 40.0 41.7 2P210-0500-NC ● ○ 5.00 2 5.0 50.00 100.00 6.00 4.8 4.8 50.0 50.9 2P210-0600-NC ● ○ 6.00 4 6.0 60.00 100.00 6.00 5.7 5.7 60.0 60.2 2P210-0800-NC ● ○ 8.00 4 8.0 80.00 120.00 8.00 7.6 2P210-1000-NC ● ○ 10.00 4 10.0 0.1 45.0 100.00 150.00 10.00 9.5 2P210-1200-NC ● ○ 12.00 4 12.0 0.1 45.0 100.00 150.00 12.00 11.4 2P210-1600-NC ● ○ 16.00 4 16.0 0.2 45.0 100.00 150.00 16.00 15.2 ● = First choice ○ = Good choice 135
