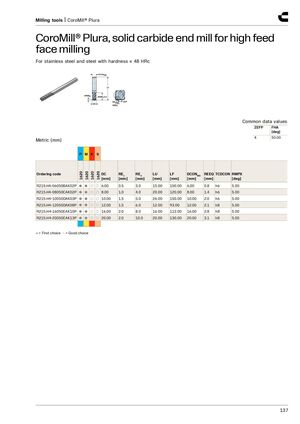

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for high feed face milling​​ For stainless steel and steel with hardness ≤ 48 HRc Common data values ZEFP FHA [deg] 4 50.00 Metric (mm) P M K S 1620 1620 1620 1620 Ordering code DC RE 1 _ RE 2 _ LU LF DCONMS REEQ TCDCON RMPX [mm] [mm] [mm] [mm] [mm] [mm] [mm] [deg] R215.H4-06050BAK02P ● ● ○ ○ 6.00 0.5 3.0 15.00 100.00 6.00 0.8 h6 5.00 R215.H4-08050CAK02P ● ● ○ ○ 8.00 1.0 4.0 20.00 120.00 8.00 1.4 h6 5.00 R215.H4-10050DAK03P ● ● ○ ○ 10.00 1.5 5.0 26.00 150.00 10.00 2.0 h6 5.00 R215.H4-12050DAK08P ● ● ○ ○ 12.00 1.5 6.0 12.00 93.00 12.00 2.1 h8 5.00 R215.H4-16050EAK10P ● ● ○ ○ 16.00 2.0 8.0 16.00 112.00 16.00 2.8 h8 5.00 R215.H4-20050EAK13P ● ● ○ ○ 20.00 2.0 10.0 20.00 130.00 20.00 3.1 h8 5.00 ● = First choice ○ = Good choice 137
