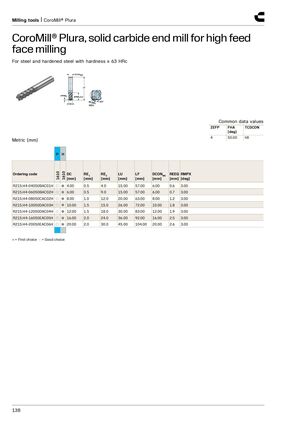

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for high feed face milling​​ For steel and hardened steel with hardness ≤ 63 HRc Common data values ZEFP FHA TCDCON [deg] 4 50.00 h8 Metric (mm) P H 1610 1610 Ordering code DC RE 1 _ RE 2 _ LU LF DCONMS REEQ RMPX [mm] [mm] [mm] [mm] [mm] [mm] [mm] [deg] R215.H4-04050BAC01H ○ ● 4.00 0.5 4.0 15.00 57.00 6.00 0.6 3.00 R215.H4-06050BAC02H ○ ● 6.00 0.5 9.0 15.00 57.00 6.00 0.7 3.00 R215.H4-08050CAC02H ○ ● 8.00 1.0 12.0 20.00 63.00 8.00 1.2 3.00 R215.H4-10050DAC03H ○ ● 10.00 1.5 15.0 26.00 72.00 10.00 1.8 3.00 R215.H4-12050DAC04H ○ ● 12.00 1.5 18.0 30.00 83.00 12.00 1.9 3.00 R215.H4-16050EAC05H ○ ● 16.00 2.0 24.0 36.00 92.00 16.00 2.5 3.00 R215.H4-20050EAC06H ○ ● 20.00 2.0 30.0 45.00 104.00 20.00 2.6 3.00 ● = First choice ○ = Good choice 138
