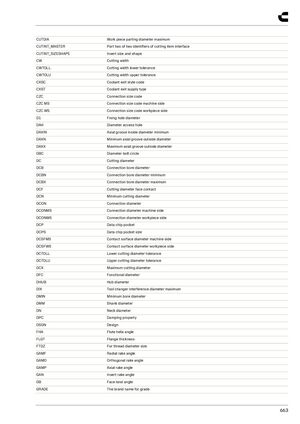

General information | Cutting tool parameters according to ISO 13399 CUTDIA Work piece parting diameter maximum CUTINT_MASTER Part two of two identifiers of cutting item interface CUTINT_SIZESHAPE Insert size and shape CW Cutting width CWTOLL Cutting width lower tolerance CWTOLU Cutting width upper tolerance CXSC Coolant exit style code CXST Coolant exit supply type CZC Connection size code CZC MS Connection size code machine side CZC WS Connection size code workpiece side D1 Fixing hole diameter DAH Diameter access hole DAXIN Axial groove inside diameter minimum DAXN Minimum axial groove outside diameter DAXX Maximum axial groove outside diameter DBC Diameter bolt circle DC Cutting diameter DCB Connection bore diameter DCBN Connection bore diameter minimum DCBX Connection bore diameter maximum DCF Cutting diameter face contact DCN Minimum cutting diameter DCON Connection diameter DCONMS Connection diameter machine side DCONWS Connection diameter workpiece side DCP Data chip pocket DCPS Data chip pocket size DCSFMS Contact surface diameter machine side DCSFWS Contact surface diameter workpiece side DCTOLL Lower cutting diameter tolerance DCTOLU Upper cutting diameter tolerance DCX Maximum cutting diameter DFC Functional diameter DHUB Hub diameter DIX Tool changer interference diameter maximum DMIN Minimum bore diameter DMM Shank diameter DN Neck diameter DPC Damping property DSGN Design FHA Flute helix angle FLGT Flange thickness FTDZ For thread diameter size GAMF Radial rake angle GAMO Orthogonal rake angle GAMP Axial rake angle GAN Insert rake angle GB Face land angle GRADE The brand name for grade 663
