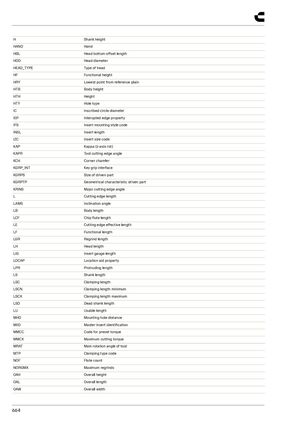

General information | Cutting tool parameters according to ISO 13399 H Shank height HAND Hand HBL Head bottom offset length HDD Head diameter HEAD_TYPE Type of head HF Functional height HRY Lowest point from reference plain HTB Body height HTH Height HTY Hole type IC Inscribed circle diameter IEP Interupted edge property IFS Insert mounting style code INSL Insert length IZC Insert size code KAP Kappa (z-axis rot) KAPR Tool cutting edge angle KCH Corner chamfer KGRP_INT Key grip interface KGRPS Size of driven part KGRPTP Geometrical characteristic driven part KRINS Major cutting edge angle L Cutting edge length LAMS Inclination angle LB Body length LCF Chip flute length LE Cutting edge effective length LF Functional length LGR Regrind length LH Head length LIG Insert gauge length LOCAP Location aid property LPR Protruding length LS Shank length LSC Clamping length LSCN Clamping length minimum LSCX Clamping length maximum LSD Dead shank length LU Usable length MHD Mounting hole distance MIID Master insert identification MMCC Code for preset torque MMCX Maximum cutting torque MRAT Main rotation angle of tool MTP Clamping type code NOF Flute count NORGMX Maximum regrinds OAH Overall height OAL Overall length OAW Overall width 664
