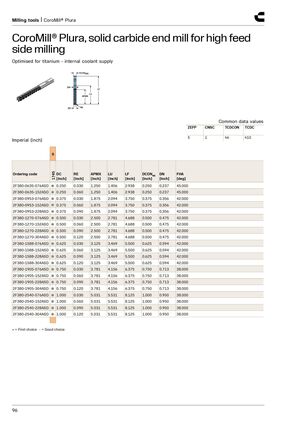

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for high feed side milling​​ Optimised for titanium - internal coolant supply Common data values ZEFP CNSC TCDCON TCDC 5 1 h6 h10 Imperial (inch) S 1745 Ordering code DC RE APMX LU LF DCONMS DN FHA [inch] [inch] [inch] [inch] [inch] [inch] [inch] [deg] 2F380-0635-076ASD ● 0.250 0.030 1.250 1.406 2.938 0.250 0.237 45.000 2F380-0635-152ASD ● 0.250 0.060 1.250 1.406 2.938 0.250 0.237 45.000 2F380-0953-076ASD ● 0.375 0.030 1.875 2.094 3.750 0.375 0.356 42.000 2F380-0953-152ASD ● 0.375 0.060 1.875 2.094 3.750 0.375 0.356 42.000 2F380-0953-228ASD ● 0.375 0.090 1.875 2.094 3.750 0.375 0.356 42.000 2F380-1270-076ASD ● 0.500 0.030 2.500 2.781 4.688 0.500 0.475 42.000 2F380-1270-152ASD ● 0.500 0.060 2.500 2.781 4.688 0.500 0.475 42.000 2F380-1270-228ASD ● 0.500 0.090 2.500 2.781 4.688 0.500 0.475 42.000 2F380-1270-304ASD ● 0.500 0.120 2.500 2.781 4.688 0.500 0.475 42.000 2F380-1588-076ASD ● 0.625 0.030 3.125 3.469 5.500 0.625 0.594 42.000 2F380-1588-152ASD ● 0.625 0.060 3.125 3.469 5.500 0.625 0.594 42.000 2F380-1588-228ASD ● 0.625 0.090 3.125 3.469 5.500 0.625 0.594 42.000 2F380-1588-304ASD ● 0.625 0.120 3.125 3.469 5.500 0.625 0.594 42.000 2F380-1905-076ASD ● 0.750 0.030 3.781 4.156 6.375 0.750 0.713 38.000 2F380-1905-152ASD ● 0.750 0.060 3.781 4.156 6.375 0.750 0.713 38.000 2F380-1905-228ASD ● 0.750 0.090 3.781 4.156 6.375 0.750 0.713 38.000 2F380-1905-304ASD ● 0.750 0.120 3.781 4.156 6.375 0.750 0.713 38.000 2F380-2540-076ASD ● 1.000 0.030 5.031 5.531 8.125 1.000 0.950 38.000 2F380-2540-152ASD ● 1.000 0.060 5.031 5.531 8.125 1.000 0.950 38.000 2F380-2540-228ASD ● 1.000 0.090 5.031 5.531 8.125 1.000 0.950 38.000 2F380-2540-304ASD ● 1.000 0.120 5.031 5.531 8.125 1.000 0.950 38.000 ● = First choice ○ = Good choice 96
