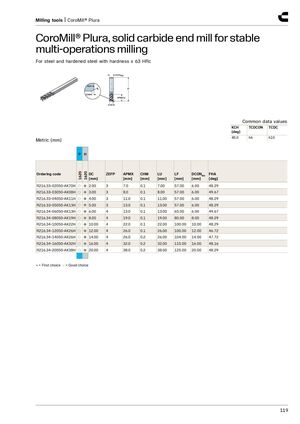

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for stable multi-operations milling​​ For steel and hardened steel with hardness ≤ 63 HRc Common data values KCH TCDCON TCDC [deg] 45.0 h6 h10 Metric (mm) P H 1620 1620 Ordering code DC ZEFP APMX CHW LU LF DCONMS FHA [mm] [mm] [mm] [mm] [mm] [mm] [deg] R216.33-02050-AK70H ○ ● 2.00 3 7.0 0.1 7.00 57.00 6.00 48.29 R216.33-03050-AK08H ○ ● 3.00 3 8.0 0.1 8.00 57.00 6.00 49.67 R216.33-04050-AK11H ○ ● 4.00 3 11.0 0.1 11.00 57.00 6.00 48.29 R216.33-05050-AK13H ○ ● 5.00 3 13.0 0.1 13.00 57.00 6.00 48.29 R216.34-06050-AK13H ○ ● 6.00 4 13.0 0.1 13.00 65.00 6.00 49.67 R216.34-08050-AK19H ○ ● 8.00 4 19.0 0.1 19.00 80.00 8.00 48.29 R216.34-10050-AK22H ○ ● 10.00 4 22.0 0.1 22.00 100.00 10.00 48.29 R216.34-12050-AK26H ○ ● 12.00 4 26.0 0.1 26.00 100.00 12.00 46.72 R216.34-14050-AK26H ○ ● 14.00 4 26.0 0.2 26.00 104.00 14.00 47.72 R216.34-16050-AK32H ○ ● 16.00 4 32.0 0.2 32.00 115.00 16.00 48.16 R216.34-20050-AK38H ○ ● 20.00 4 38.0 0.2 38.00 125.00 20.00 48.29 ● = First choice ○ = Good choice 119
