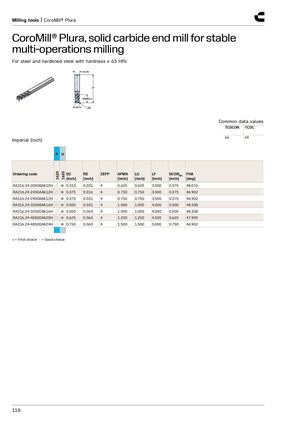

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for stable multi-operations milling​​ For steel and hardened steel with hardness ≤ 63 HRc Common data values TCDCON TCDC h6 h9 Imperial (inch) P H 1620 1620 Ordering code DC RE ZEFP APMX LU LF DCONMS FHA [inch] [inch] [inch] [inch] [inch] [inch] [deg] RA216.24-2050BAK10H ○ ● 0.313 0.031 4 0.625 0.625 3.500 0.375 48.076 RA216.24-2450AAK12H ○ ● 0.375 0.016 4 0.750 0.750 3.500 0.375 46.902 RA216.24-2450BAK12H ○ ● 0.375 0.031 4 0.750 0.750 3.500 0.375 46.902 RA216.24-3250BAK16H ○ ● 0.500 0.031 4 1.000 1.000 4.000 0.500 48.338 RA216.24-3250DAK16H ○ ● 0.500 0.063 4 1.000 1.000 4.000 0.500 48.338 RA216.24-4050DAK20H ○ ● 0.625 0.063 4 1.250 1.250 4.500 0.625 47.949 RA216.24-4850DAK24H ○ ● 0.750 0.063 4 1.500 1.500 5.000 0.750 46.902 ● = First choice ○ = Good choice 118
