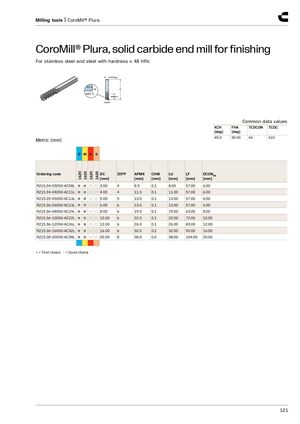

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for finishing​​ For stainless steel and steel with hardness ≤ 48 HRc Common data values KCH FHA TCDCON TCDC [deg] [deg] 45.0 50.00 h6 h10 Metric (mm) P M K S 1620 1620 1620 1620 Ordering code DC ZEFP APMX CHW LU LF DCONMS [mm] [mm] [mm] [mm] [mm] [mm] R215.34-03050-AC08L ● ● ○ ○ 3.00 4 8.0 0.1 8.00 57.00 6.00 R215.34-04050-AC11L ● ● ○ ○ 4.00 4 11.0 0.1 11.00 57.00 6.00 R215.35-05050-AC13L ● ● ○ ○ 5.00 5 13.0 0.1 13.00 57.00 6.00 R215.36-06050-AC13L ● ● ○ ○ 6.00 6 13.0 0.1 13.00 57.00 6.00 R215.36-08050-AC19L ● ● ○ ○ 8.00 6 19.0 0.1 19.00 63.00 8.00 R215.36-10050-AC22L ● ● ○ ○ 10.00 6 22.0 0.1 22.00 72.00 10.00 R215.36-12050-AC26L ● ● ○ ○ 12.00 6 26.0 0.1 26.00 83.00 12.00 R215.36-16050-AC32L ● ● ○ ○ 16.00 6 32.0 0.2 32.00 92.00 16.00 R215.38-20050-AC38L ● ● ○ ○ 20.00 8 38.0 0.2 38.00 104.00 20.00 ● = First choice ○ = Good choice 121
