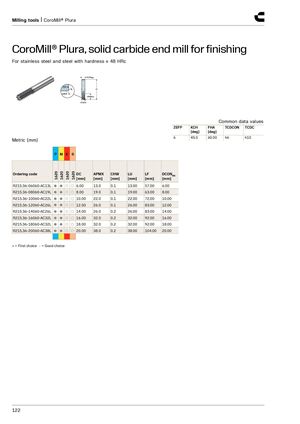

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for finishing​​ For stainless steel and steel with hardness ≤ 48 HRc Common data values ZEFP KCH FHA TCDCON TCDC [deg] [deg] 6 45.0 60.00 h6 h10 Metric (mm) P M K S 1620 1620 1620 1620 Ordering code DC APMX CHW LU LF DCONMS [mm] [mm] [mm] [mm] [mm] [mm] R215.36-06060-AC13L ● ● ○ ○ 6.00 13.0 0.1 13.00 57.00 6.00 R215.36-08060-AC19L ● ● ○ ○ 8.00 19.0 0.1 19.00 63.00 8.00 R215.36-10060-AC22L ● ● ○ ○ 10.00 22.0 0.1 22.00 72.00 10.00 R215.36-12060-AC26L ● ● ○ ○ 12.00 26.0 0.1 26.00 83.00 12.00 R215.36-14060-AC26L ● ● ○ ○ 14.00 26.0 0.2 26.00 83.00 14.00 R215.36-16060-AC32L ● ● ○ ○ 16.00 32.0 0.2 32.00 92.00 16.00 R215.36-18060-AC32L ● ● ○ ○ 18.00 32.0 0.2 32.00 92.00 18.00 R215.36-20060-AC38L ● ● ○ ○ 20.00 38.0 0.2 38.00 104.00 20.00 ● = First choice ○ = Good choice 122
