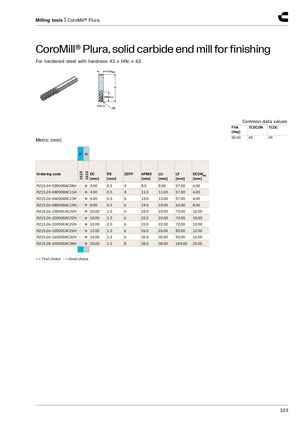

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for finishing​​ For hardened steel with hardness 43 ≤ HRc ≤ 63 Common data values FHA TCDCON TCDC [deg] 50.00 h5 h9 Metric (mm) P H 1610 1610 Ordering code DC RE ZEFP APMX LU LF DCONMS [mm] [mm] [mm] [mm] [mm] [mm] R215.24-03050BAC08H ○ ● 3.00 0.5 4 8.0 8.00 57.00 6.00 R215.24-04050BAC11H ○ ● 4.00 0.5 4 11.0 11.00 57.00 6.00 R215.26-06050BAC13H ○ ● 6.00 0.5 6 13.0 13.00 57.00 6.00 R215.26-08050BAC19H ○ ● 8.00 0.5 6 19.0 19.00 63.00 8.00 R215.26-10050CAC22H ○ ● 10.00 1.0 6 22.0 22.00 72.00 10.00 R215.26-10050DAC22H ○ ● 10.00 1.5 6 22.0 22.00 72.00 10.00 R215.26-10050EAC22H ○ ● 10.00 2.0 6 22.0 22.00 72.00 10.00 R215.26-12050CAC26H ○ ● 12.00 1.0 6 26.0 26.00 83.00 12.00 R215.26-16050DAC32H ○ ● 16.00 1.5 6 32.0 32.00 92.00 16.00 R215.28-20050DAC38H ○ ● 20.00 1.5 8 38.0 38.00 104.00 20.00 ● = First choice ○ = Good choice 123
