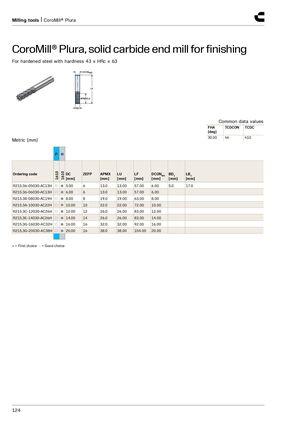

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for finishing​​ For hardened steel with hardness 43 ≤ HRc ≤ 63 Common data values FHA TCDCON TCDC [deg] 30.00 h6 h10 Metric (mm) P H 1610 1610 Ordering code DC ZEFP APMX LU LF DCONMS BD 1 _ LB 1 _ [mm] [mm] [mm] [mm] [mm] [mm] [mm] R215.36-05030-AC13H ○ ● 5.00 6 13.0 13.00 57.00 6.00 5.0 17.0 R215.36-06030-AC13H ○ ● 6.00 6 13.0 13.00 57.00 6.00 R215.38-08030-AC19H ○ ● 8.00 8 19.0 19.00 63.00 8.00 R215.3A-10030-AC22H ○ ● 10.00 10 22.0 22.00 72.00 10.00 R215.3C-12030-AC26H ○ ● 12.00 12 26.0 26.00 83.00 12.00 R215.3E-14030-AC26H ○ ● 14.00 14 26.0 26.00 83.00 14.00 R215.3G-16030-AC32H ○ ● 16.00 16 32.0 32.00 92.00 16.00 R215.3G-20030-AC38H ○ ● 20.00 16 38.0 38.00 104.00 20.00 ● = First choice ○ = Good choice 124
