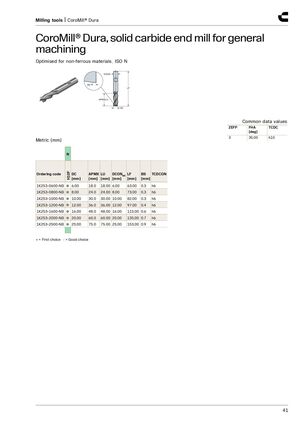

Milling tools | CoroMill® Dura CoroMill® Dura, solid carbide end mill for general machining​​ Optimised for non-ferrous materials, ISO N DCON BS LF APMX/LU DC Common data values ZEFP FHA TCDC [deg] 3 35.00 h10 Metric (mm) N H10F Ordering code DC APMX LU DCONMS LF BS TCDCON [mm] [mm] [mm] [mm] [mm] [mm] 1K253-0600-NB ● 6.00 18.0 18.00 6.00 63.00 0.3 h6 1K253-0800-NB ● 8.00 24.0 24.00 8.00 73.00 0.3 h6 1K253-1000-NB ● 10.00 30.0 30.00 10.00 82.00 0.3 h6 1K253-1200-NB ● 12.00 36.0 36.00 12.00 97.00 0.4 h6 1K253-1600-NB ● 16.00 48.0 48.00 16.00 115.00 0.6 h6 1K253-2000-NB ● 20.00 60.0 60.00 20.00 135.00 0.7 h6 1K253-2500-NB ● 25.00 75.0 75.00 25.00 153.00 0.9 h6 ● = First choice ○ = Good choice 41
