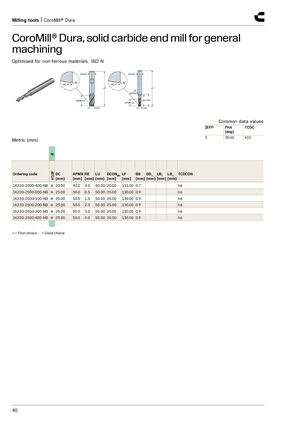

Milling tools | CoroMill® Dura CoroMill® Dura, solid carbide end mill for general machining​​ Optimised for non-ferrous materials, ISO N DCON DCON RE RE BS BS LF LF BHTA2 APMX/LU LB1 LB2 APMX/LU DC DC Common data values ZEFP FHA TCDC [deg] 3 35.00 h10 Metric (mm) N H10F Ordering code DC APMX RE LU DCONMS LF BS BD 1 LB 1 LB 2 TCDCON _ _ _ [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 1K233-2000-400-NB ● 20.00 40.0 4.0 40.00 20.00 111.00 0.7 h6 1K233-2500-050-NB ● 25.00 50.0 0.5 50.00 25.00 130.00 0.9 h6 1K233-2500-100-NB ● 25.00 50.0 1.0 50.00 25.00 130.00 0.9 h6 1K233-2500-200-NB ● 25.00 50.0 2.0 50.00 25.00 130.00 0.9 h6 1K233-2500-300-NB ● 25.00 50.0 3.0 50.00 25.00 130.00 0.9 h6 1K233-2500-400-NB ● 25.00 50.0 4.0 50.00 25.00 130.00 0.9 h6 ● = First choice ○ = Good choice 40
