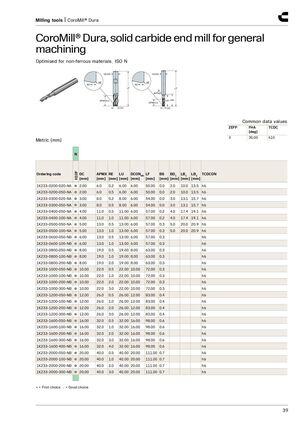

Milling tools | CoroMill® Dura CoroMill® Dura, solid carbide end mill for general machining​​ Optimised for non-ferrous materials, ISO N DCON DCON RE RE BS BS LF LF BHTA2 APMX/LU LB1 LB2 APMX/LU DC DC Common data values ZEFP FHA TCDC [deg] 3 35.00 h10 Metric (mm) N H10F Ordering code DC APMX RE LU DCONMS LF BS BD 1 LB 1 LB 2 TCDCON _ _ _ [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 1K233-0200-020-NA ● 2.00 6.0 0.2 6.00 6.00 50.00 0.0 2.0 10.0 13.5 h6 1K233-0200-050-NA ● 2.00 6.0 0.5 6.00 6.00 50.00 0.0 2.0 10.0 13.5 h6 1K233-0300-020-NA ● 3.00 8.0 0.2 8.00 6.00 54.00 0.0 3.0 13.1 15.7 h6 1K233-0300-050-NA ● 3.00 8.0 0.5 8.00 6.00 54.00 0.0 3.0 13.1 15.7 h6 1K233-0400-050-NA ● 4.00 11.0 0.5 11.00 6.00 57.00 0.2 4.0 17.4 19.1 h6 1K233-0400-100-NA ● 4.00 11.0 1.0 11.00 6.00 57.00 0.2 4.0 17.4 19.1 h6 1K233-0500-050-NA ● 5.00 13.0 0.5 13.00 6.00 57.00 0.3 5.0 20.0 20.9 h6 1K233-0500-100-NA ● 5.00 13.0 1.0 13.00 6.00 57.00 0.3 5.0 20.0 20.9 h6 1K233-0600-050-NB ● 6.00 13.0 0.5 13.00 6.00 57.00 0.3 h6 1K233-0600-100-NB ● 6.00 13.0 1.0 13.00 6.00 57.00 0.3 h6 1K233-0800-050-NB ● 8.00 19.0 0.5 19.00 8.00 63.00 0.3 h6 1K233-0800-100-NB ● 8.00 19.0 1.0 19.00 8.00 63.00 0.3 h6 1K233-0800-200-NB ● 8.00 19.0 2.0 19.00 8.00 63.00 0.3 h6 1K233-1000-050-NB ● 10.00 22.0 0.5 22.00 10.00 72.00 0.3 h6 1K233-1000-100-NB ● 10.00 22.0 1.0 22.00 10.00 72.00 0.3 h6 1K233-1000-200-NB ● 10.00 22.0 2.0 22.00 10.00 72.00 0.3 h6 1K233-1000-300-NB ● 10.00 22.0 3.0 22.00 10.00 72.00 0.3 h6 1K233-1200-050-NB ● 12.00 26.0 0.5 26.00 12.00 83.00 0.4 h6 1K233-1200-100-NB ● 12.00 26.0 1.0 26.00 12.00 83.00 0.4 h6 1K233-1200-200-NB ● 12.00 26.0 2.0 26.00 12.00 83.00 0.4 h6 1K233-1200-300-NB ● 12.00 26.0 3.0 26.00 12.00 83.00 0.4 h6 1K233-1600-050-NB ● 16.00 32.0 0.5 32.00 16.00 98.00 0.6 h6 1K233-1600-100-NB ● 16.00 32.0 1.0 32.00 16.00 98.00 0.6 h6 1K233-1600-200-NB ● 16.00 32.0 2.0 32.00 16.00 98.00 0.6 h6 1K233-1600-300-NB ● 16.00 32.0 3.0 32.00 16.00 98.00 0.6 h6 1K233-1600-400-NB ● 16.00 32.0 4.0 32.00 16.00 98.00 0.6 h6 1K233-2000-050-NB ● 20.00 40.0 0.5 40.00 20.00 111.00 0.7 h6 1K233-2000-100-NB ● 20.00 40.0 1.0 40.00 20.00 111.00 0.7 h6 1K233-2000-200-NB ● 20.00 40.0 2.0 40.00 20.00 111.00 0.7 h6 1K233-2000-300-NB ● 20.00 40.0 3.0 40.00 20.00 111.00 0.7 h6 ● = First choice ○ = Good choice 39
