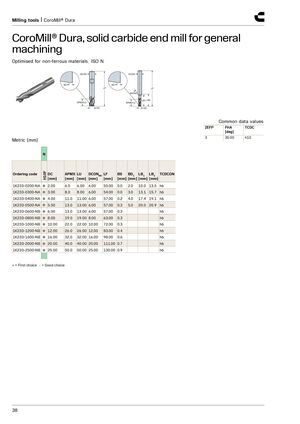

Milling tools | CoroMill® Dura CoroMill® Dura, solid carbide end mill for general machining​​ Optimised for non-ferrous materials, ISO N DCON DCON BS BS LF LF BHTA2 LB1 LB2 APMX/LU APMX/LU DC DC Common data values ZEFP FHA TCDC [deg] 3 35.00 h10 Metric (mm) N H10F Ordering code DC APMX LU DCONMS LF BS BD 1 LB 1 LB 2 TCDCON _ _ _ [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 1K233-0200-NA ● 2.00 6.0 6.00 6.00 50.00 0.0 2.0 10.0 13.5 h6 1K233-0300-NA ● 3.00 8.0 8.00 6.00 54.00 0.0 3.0 13.1 15.7 h6 1K233-0400-NA ● 4.00 11.0 11.00 6.00 57.00 0.2 4.0 17.4 19.1 h6 1K233-0500-NA ● 5.00 13.0 13.00 6.00 57.00 0.3 5.0 20.0 20.9 h6 1K233-0600-NB ● 6.00 13.0 13.00 6.00 57.00 0.3 h6 1K233-0800-NB ● 8.00 19.0 19.00 8.00 63.00 0.3 h6 1K233-1000-NB ● 10.00 22.0 22.00 10.00 72.00 0.3 h6 1K233-1200-NB ● 12.00 26.0 26.00 12.00 83.00 0.4 h6 1K233-1600-NB ● 16.00 32.0 32.00 16.00 98.00 0.6 h6 1K233-2000-NB ● 20.00 40.0 40.00 20.00 111.00 0.7 h6 1K233-2500-NB ● 25.00 50.0 50.00 25.00 130.00 0.9 h6 ● = First choice ○ = Good choice 38
