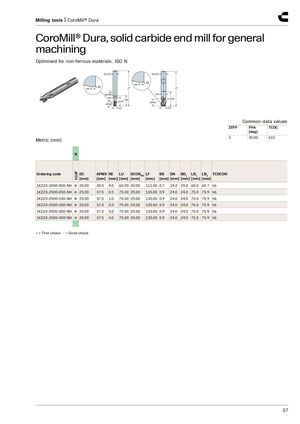

Milling tools | CoroMill® Dura CoroMill® Dura, solid carbide end mill for general machining​​ Optimised for non-ferrous materials, ISO N DCON DCON RE BS RE BS LF LF BHTA2 DN DN LU/LB1 LB2 LU/LB1 APMX APMX DC DC Common data values ZEFP FHA TCDC [deg] 3 35.00 h10 Metric (mm) N H10F Ordering code DC APMX RE LU DCONMS LF BS DN BD 1 LB 1 LB 2 TCDCON _ _ _ [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 1K223-2000-400-NH ● 20.00 30.0 4.0 60.00 20.00 111.00 0.7 19.2 19.2 60.0 60.7 h6 1K223-2500-050-NH ● 25.00 37.5 0.5 75.00 25.00 135.00 0.9 24.0 24.0 75.0 75.9 h6 1K223-2500-100-NH ● 25.00 37.5 1.0 75.00 25.00 135.00 0.9 24.0 24.0 75.0 75.9 h6 1K223-2500-200-NH ● 25.00 37.5 2.0 75.00 25.00 135.00 0.9 24.0 24.0 75.0 75.9 h6 1K223-2500-300-NH ● 25.00 37.5 3.0 75.00 25.00 135.00 0.9 24.0 24.0 75.0 75.9 h6 1K223-2500-400-NH ● 25.00 37.5 4.0 75.00 25.00 135.00 0.9 24.0 24.0 75.0 75.9 h6 ● = First choice ○ = Good choice 37
