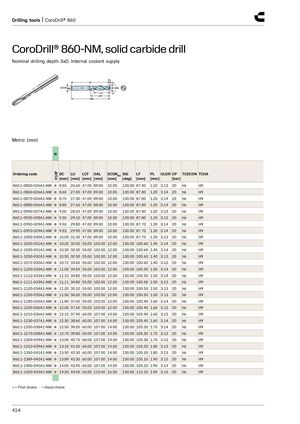

Drilling tools | CoroDrill® 860 CoroDrill® 860-NM, solid carbide drill​​ Nominal drilling depth 3xD. Internal coolant supply Metric (mm) N H10F Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR CP TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] [bar] 860.1-0850-026A1-NM ● 8.50 26.60 47.00 89.00 10.00 130.00 87.90 1.10 3.13 20 h6 H9 860.1-0860-026A1-NM ● 8.60 27.00 47.00 89.00 10.00 130.00 87.80 1.20 3.14 20 h6 H9 860.1-0870-026A1-NM ● 8.70 27.30 47.00 89.00 10.00 130.00 87.80 1.20 3.14 20 h6 H9 860.1-0880-026A1-NM ● 8.80 27.60 47.00 89.00 10.00 130.00 87.80 1.20 3.14 20 h6 H9 860.1-0900-027A1-NM ● 9.00 28.20 47.00 89.00 10.00 130.00 87.80 1.20 3.13 20 h6 H9 860.1-0930-028A1-NM ● 9.30 29.10 47.00 89.00 10.00 130.00 87.80 1.20 3.13 20 h6 H9 860.1-0950-029A1-NM ● 9.50 29.80 47.00 89.00 10.00 130.00 87.70 1.30 3.14 20 h6 H9 860.1-0953-029A1-NM ● 9.53 29.90 47.00 89.00 10.00 130.00 87.70 1.30 3.14 20 h6 H9 860.1-1000-030A1-NM ● 10.00 31.30 47.00 89.00 10.00 130.00 87.70 1.30 3.13 20 h6 H9 860.1-1020-031A1-NM ● 10.20 32.00 55.00 102.00 12.00 130.00 100.60 1.40 3.14 20 h6 H9 860.1-1030-031A1-NM ● 10.30 32.30 55.00 102.00 12.00 130.00 100.60 1.40 3.14 20 h6 H9 860.1-1050-032A1-NM ● 10.50 32.90 55.00 102.00 12.00 130.00 100.60 1.40 3.13 20 h6 H9 860.1-1072-032A1-NM ● 10.72 33.60 55.00 102.00 12.00 130.00 100.60 1.40 3.13 20 h6 H9 860.1-1100-033A1-NM ● 11.00 34.50 55.00 102.00 12.00 130.00 100.50 1.50 3.14 20 h6 H9 860.1-1110-033A1-NM ● 11.10 34.80 55.00 102.00 12.00 130.00 100.50 1.50 3.14 20 h6 H9 860.1-1111-033A1-NM ● 11.11 34.80 55.00 102.00 12.00 130.00 100.50 1.50 3.13 20 h6 H9 860.1-1120-034A1-NM ● 11.20 35.10 55.00 102.00 12.00 130.00 100.50 1.50 3.13 20 h6 H9 860.1-1150-035A1-NM ● 11.50 36.00 55.00 102.00 12.00 130.00 100.50 1.50 3.13 20 h6 H9 860.1-1180-035A1-NM ● 11.80 37.00 55.00 102.00 12.00 130.00 100.40 1.60 3.14 20 h6 H9 860.1-1200-036A1-NM ● 12.00 37.60 55.00 102.00 12.00 130.00 100.40 1.60 3.13 20 h6 H9 860.1-1210-036A1-NM ● 12.10 37.90 60.00 107.00 14.00 130.00 105.40 1.60 3.13 20 h6 H9 860.1-1230-037A1-NM ● 12.30 38.60 60.00 107.00 14.00 130.00 105.40 1.60 3.14 20 h6 H9 860.1-1250-038A1-NM ● 12.50 39.20 60.00 107.00 14.00 130.00 105.30 1.70 3.14 20 h6 H9 860.1-1270-038A1-NM ● 12.70 39.80 60.00 107.00 14.00 130.00 105.30 1.70 3.13 20 h6 H9 860.1-1300-039A1-NM ● 13.00 40.70 60.00 107.00 14.00 130.00 105.30 1.70 3.13 20 h6 H9 860.1-1310-039A1-NM ● 13.10 41.00 60.00 107.00 14.00 130.00 105.20 1.80 3.13 20 h6 H9 860.1-1350-041A1-NM ● 13.50 42.30 60.00 107.00 14.00 130.00 105.20 1.80 3.13 20 h6 H9 860.1-1389-042A1-NM ● 13.89 43.30 60.00 107.00 14.00 130.00 105.10 1.90 3.12 20 h6 H9 860.1-1400-042A1-NM ● 14.00 43.90 60.00 107.00 14.00 130.00 105.10 1.90 3.14 20 h6 H9 860.1-1420-043A1-NM ● 14.20 44.50 65.00 115.00 16.00 130.00 113.10 1.90 3.13 20 h6 H9 ● = First choice ○ = Good choice 414
