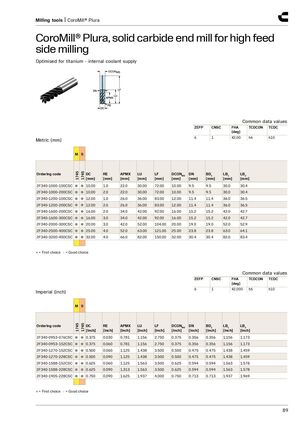

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for high feed side milling​​ Optimised for titanium - internal coolant supply Common data values ZEFP CNSC FHA TCDCON TCDC [deg] 6 1 42.00 h6 h10 Metric (mm) M S 1745 1745 Ordering code DC RE APMX LU LF DCONMS DN BD 1 _ LB 1 _ LB 2 _ [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 2F340-1000-100CSC ● ● 10.00 1.0 22.0 30.00 72.00 10.00 9.5 9.5 30.0 30.4 2F340-1000-200CSC ● ● 10.00 2.0 22.0 30.00 72.00 10.00 9.5 9.5 30.0 30.4 2F340-1200-100CSC ● ● 12.00 1.0 26.0 36.00 83.00 12.00 11.4 11.4 36.0 36.5 2F340-1200-200CSC ● ● 12.00 2.0 26.0 36.00 83.00 12.00 11.4 11.4 36.0 36.5 2F340-1600-200CSC ● ● 16.00 2.0 34.0 42.00 92.00 16.00 15.2 15.2 42.0 42.7 2F340-1600-300CSC ● ● 16.00 3.0 34.0 42.00 92.00 16.00 15.2 15.2 42.0 42.7 2F340-2000-300CSC ● ● 20.00 3.0 42.0 52.00 104.00 20.00 19.0 19.0 52.0 52.9 2F340-2500-400CSC ● ● 25.00 4.0 52.0 63.00 121.00 25.00 23.8 23.8 63.0 64.1 2F340-3200-400CSC ● ● 32.00 4.0 66.0 82.00 150.00 32.00 30.4 30.4 82.0 83.4 ● = First choice ○ = Good choice Common data values ZEFP CNSC FHA TCDCON TCDC [deg] 6 1 42.000 h6 h10 Imperial (inch) M S 1745 1745 Ordering code DC RE APMX LU LF DCONMS DN BD 1 _ LB 1 _ LB 2 _ [inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] 2F340-0953-076CSC ● ● 0.375 0.030 0.781 1.156 2.750 0.375 0.356 0.356 1.156 1.173 2F340-0953-152CSC ● ● 0.375 0.060 0.781 1.156 2.750 0.375 0.356 0.356 1.156 1.173 2F340-1270-152CSC ● ● 0.500 0.060 1.125 1.438 3.500 0.500 0.475 0.475 1.438 1.459 2F340-1270-228CSC ● ● 0.500 0.090 1.125 1.438 3.500 0.500 0.475 0.475 1.438 1.459 2F340-1588-152CSC ● ● 0.625 0.060 1.125 1.563 3.500 0.625 0.594 0.594 1.563 1.578 2F340-1588-228CSC ● ● 0.625 0.090 1.313 1.563 3.500 0.625 0.594 0.594 1.563 1.578 2F340-1905-228CSC ● ● 0.750 0.090 1.625 1.937 4.000 0.750 0.713 0.713 1.937 1.969 ● = First choice ○ = Good choice 89
