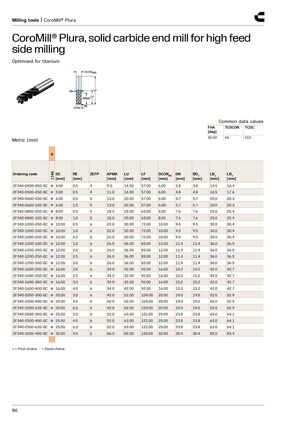

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for high feed side milling​​ Optimised for titanium Common data values FHA TCDCON TCDC [deg] 42.00 h6 h10 Metric (mm) S 1745 Ordering code DC RE ZEFP APMX LU LF DCONMS DN BD 1 _ LB 1 _ LB 2_ [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 2F340-0400-050-SC ● 4.00 0.5 4 9.0 14.50 57.00 6.00 3.8 3.8 14.5 16.4 2F340-0500-050-SC ● 5.00 0.5 4 11.0 16.50 57.00 6.00 4.8 4.8 16.5 17.6 2F340-0600-050-SC ● 6.00 0.5 5 13.0 20.00 57.00 6.00 5.7 5.7 20.0 20.3 2F340-0600-100-SC ● 6.00 1.0 5 13.0 20.00 57.00 6.00 5.7 5.7 20.0 20.3 2F340-0800-050-SC ● 8.00 0.5 5 18.0 25.00 63.00 8.00 7.6 7.6 25.0 25.4 2F340-0800-100-SC ● 8.00 1.0 5 18.0 25.00 63.00 8.00 7.6 7.6 25.0 25.4 2F340-1000-050-SC ● 10.00 0.5 6 22.0 30.00 72.00 10.00 9.5 9.5 30.0 30.4 2F340-1000-100-SC ● 10.00 1.0 6 22.0 30.00 72.00 10.00 9.5 9.5 30.0 30.4 2F340-1000-200-SC ● 10.00 2.0 6 22.0 30.00 72.00 10.00 9.5 9.5 30.0 30.4 2F340-1200-100-SC ● 12.00 1.0 6 26.0 36.00 83.00 12.00 11.4 11.4 36.0 36.5 2F340-1200-200-SC ● 12.00 2.0 6 26.0 36.00 83.00 12.00 11.4 11.4 36.0 36.5 2F340-1200-250-SC ● 12.00 2.5 6 26.0 36.00 83.00 12.00 11.4 11.4 36.0 36.5 2F340-1200-300-SC ● 12.00 3.0 6 26.0 36.00 83.00 12.00 11.4 11.4 36.0 36.5 2F340-1600-200-SC ● 16.00 2.0 6 34.0 42.00 92.00 16.00 15.2 15.2 42.0 42.7 2F340-1600-250-SC ● 16.00 2.5 6 34.0 42.00 92.00 16.00 15.2 15.2 42.0 42.7 2F340-1600-300-SC ● 16.00 3.0 6 34.0 42.00 92.00 16.00 15.2 15.2 42.0 42.7 2F340-1600-400-SC ● 16.00 4.0 6 34.0 42.00 92.00 16.00 15.2 15.2 42.0 42.7 2F340-2000-300-SC ● 20.00 3.0 6 42.0 52.00 104.00 20.00 19.0 19.0 52.0 52.9 2F340-2000-400-SC ● 20.00 4.0 6 42.0 52.00 104.00 20.00 19.0 19.0 52.0 52.9 2F340-2000-635-SC ● 20.00 6.3 6 42.0 52.00 104.00 20.00 19.0 19.0 52.0 52.9 2F340-2500-300-SC ● 25.00 3.0 6 52.0 63.00 121.00 25.00 23.8 23.8 63.0 64.1 2F340-2500-400-SC ● 25.00 4.0 6 52.0 63.00 121.00 25.00 23.8 23.8 63.0 64.1 2F340-2500-635-SC ● 25.00 6.3 6 52.0 63.00 121.00 25.00 23.8 23.8 63.0 64.1 2F340-3200-400-SC ● 32.00 4.0 6 66.0 82.00 150.00 32.00 30.4 30.4 82.0 83.4 ● = First choice ○ = Good choice 86
