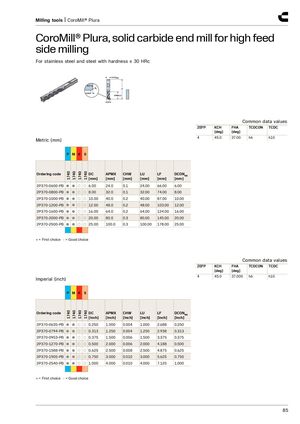

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for high feed side milling​​ For stainless steel and steel with hardness ≤ 30 HRc Common data values ZEFP KCH FHA TCDCON TCDC [deg] [deg] 4 45.0 37.00 h6 h10 Metric (mm) P M K S 1740 1740 1740 1740 Ordering code DC APMX CHW LU LF DCONMS [mm] [mm] [mm] [mm] [mm] [mm] 2P370-0600-PB ● ● ○ ○ 6.00 24.0 0.1 24.00 66.00 6.00 2P370-0800-PB ● ● ○ ○ 8.00 32.0 0.1 32.00 74.00 8.00 2P370-1000-PB ● ● ○ ○ 10.00 40.0 0.2 40.00 87.00 10.00 2P370-1200-PB ● ● ○ ○ 12.00 48.0 0.2 48.00 103.00 12.00 2P370-1600-PB ● ● ○ ○ 16.00 64.0 0.2 64.00 124.00 16.00 2P370-2000-PB ● ● ○ ○ 20.00 80.0 0.3 80.00 145.00 20.00 2P370-2500-PB ● ● ○ ○ 25.00 100.0 0.3 100.00 178.00 25.00 ● = First choice ○ = Good choice Common data values ZEFP KCH FHA TCDCON TCDC [deg] [deg] 4 45.0 37.000 h6 h10 Imperial (inch) P M K S 1740 1740 1740 1740 Ordering code DC APMX CHW LU LF DCONMS [inch] [inch] [inch] [inch] [inch] [inch] 2P370-0635-PB ● ● ○ ○ 0.250 1.000 0.004 1.000 2.688 0.250 2P370-0794-PB ● ● ○ ○ 0.313 1.250 0.004 1.250 2.938 0.313 2P370-0953-PB ● ● ○ ○ 0.375 1.500 0.006 1.500 3.375 0.375 2P370-1270-PB ● ● ○ ○ 0.500 2.000 0.006 2.000 4.188 0.500 2P370-1588-PB ● ● ○ ○ 0.625 2.500 0.008 2.500 4.875 0.625 2P370-1905-PB ● ● ○ ○ 0.750 3.000 0.010 3.000 5.625 0.750 2P370-2540-PB ● ● ○ ○ 1.000 4.000 0.010 4.000 7.125 1.000 ● = First choice ○ = Good choice 85
