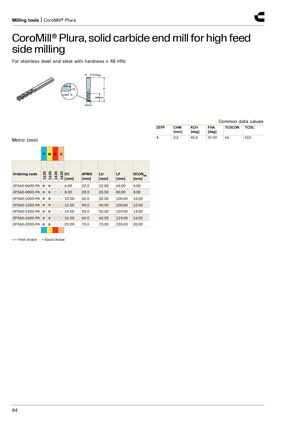

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for high feed side milling​​ For stainless steel and steel with hardness ≤ 48 HRc Common data values ZEFP CHW KCH FHA TCDCON TCDC [mm] [deg] [deg] 4 0.2 45.0 37.00 h6 h10 Metric (mm) P M K S 1630 1630 1630 1630 Ordering code DC APMX LU LF DCONMS [mm] [mm] [mm] [mm] [mm] 2P360-0600-PA ● ● ○ ○ 6.00 22.0 22.00 65.00 6.00 2P360-0800-PA ● ● ○ ○ 8.00 28.0 28.00 80.00 8.00 2P360-1000-PA ● ● ○ ○ 10.00 32.0 32.00 100.00 10.00 2P360-1200-PA ● ● ○ ○ 12.00 40.0 40.00 100.00 12.00 2P360-1400-PA ● ● ○ ○ 14.00 50.0 50.00 104.00 14.00 2P360-1600-PA ● ● ○ ○ 16.00 60.0 60.00 124.00 16.00 2P360-2000-PA ● ● ○ ○ 20.00 70.0 70.00 155.00 20.00 ● = First choice ○ = Good choice 84
