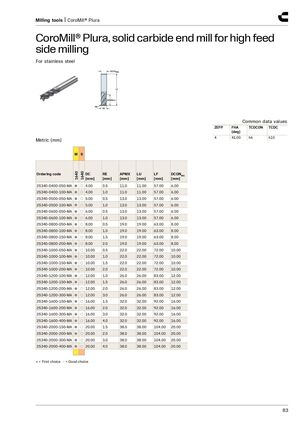

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for high feed side milling​​ For stainless steel Common data values ZEFP FHA TCDCON TCDC [deg] 4 41.00 h6 h10 Metric (mm) M S 1640 1640 Ordering code DC RE APMX LU LF DCONMS [mm] [mm] [mm] [mm] [mm] [mm] 2S340-0400-050-MA ● ○ 4.00 0.5 11.0 11.00 57.00 6.00 2S340-0400-100-MA ● ○ 4.00 1.0 11.0 11.00 57.00 6.00 2S340-0500-050-MA ● ○ 5.00 0.5 13.0 13.00 57.00 6.00 2S340-0500-100-MA ● ○ 5.00 1.0 13.0 13.00 57.00 6.00 2S340-0600-050-MA ● ○ 6.00 0.5 13.0 13.00 57.00 6.00 2S340-0600-100-MA ● ○ 6.00 1.0 13.0 13.00 57.00 6.00 2S340-0800-050-MA ● ○ 8.00 0.5 19.0 19.00 63.00 8.00 2S340-0800-100-MA ● ○ 8.00 1.0 19.0 19.00 63.00 8.00 2S340-0800-150-MA ● ○ 8.00 1.5 19.0 19.00 63.00 8.00 2S340-0800-200-MA ● ○ 8.00 2.0 19.0 19.00 63.00 8.00 2S340-1000-050-MA ● ○ 10.00 0.5 22.0 22.00 72.00 10.00 2S340-1000-100-MA ● ○ 10.00 1.0 22.0 22.00 72.00 10.00 2S340-1000-150-MA ● ○ 10.00 1.5 22.0 22.00 72.00 10.00 2S340-1000-200-MA ● ○ 10.00 2.0 22.0 22.00 72.00 10.00 2S340-1200-100-MA ● ○ 12.00 1.0 26.0 26.00 83.00 12.00 2S340-1200-150-MA ● ○ 12.00 1.5 26.0 26.00 83.00 12.00 2S340-1200-200-MA ● ○ 12.00 2.0 26.0 26.00 83.00 12.00 2S340-1200-300-MA ● ○ 12.00 3.0 26.0 26.00 83.00 12.00 2S340-1600-150-MA ● ○ 16.00 1.5 32.0 32.00 92.00 16.00 2S340-1600-200-MA ● ○ 16.00 2.0 32.0 32.00 92.00 16.00 2S340-1600-300-MA ● ○ 16.00 3.0 32.0 32.00 92.00 16.00 2S340-1600-400-MA ● ○ 16.00 4.0 32.0 32.00 92.00 16.00 2S340-2000-150-MA ● ○ 20.00 1.5 38.0 38.00 104.00 20.00 2S340-2000-200-MA ● ○ 20.00 2.0 38.0 38.00 104.00 20.00 2S340-2000-300-MA ● ○ 20.00 3.0 38.0 38.00 104.00 20.00 2S340-2000-400-MA ● ○ 20.00 4.0 38.0 38.00 104.00 20.00 ● = First choice ○ = Good choice 83
