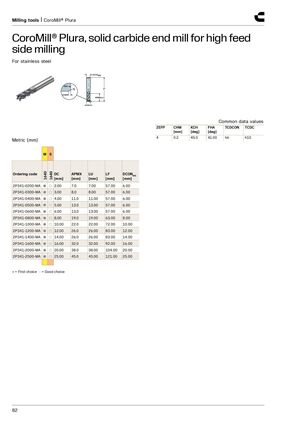

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for high feed side milling​​ For stainless steel Common data values ZEFP CHW KCH FHA TCDCON TCDC [mm] [deg] [deg] 4 0.2 45.0 41.00 h6 h10 Metric (mm) M S 1640 1640 Ordering code DC APMX LU LF DCONMS [mm] [mm] [mm] [mm] [mm] 2P341-0200-MA ● ○ 2.00 7.0 7.00 57.00 6.00 2P341-0300-MA ● ○ 3.00 8.0 8.00 57.00 6.00 2P341-0400-MA ● ○ 4.00 11.0 11.00 57.00 6.00 2P341-0500-MA ● ○ 5.00 13.0 13.00 57.00 6.00 2P341-0600-MA ● ○ 6.00 13.0 13.00 57.00 6.00 2P341-0800-MA ● ○ 8.00 19.0 19.00 63.00 8.00 2P341-1000-MA ● ○ 10.00 22.0 22.00 72.00 10.00 2P341-1200-MA ● ○ 12.00 26.0 26.00 83.00 12.00 2P341-1400-MA ● ○ 14.00 26.0 26.00 83.00 14.00 2P341-1600-MA ● ○ 16.00 32.0 32.00 92.00 16.00 2P341-2000-MA ● ○ 20.00 38.0 38.00 104.00 20.00 2P341-2500-MA ● ○ 25.00 45.0 45.00 121.00 25.00 ● = First choice ○ = Good choice 82
