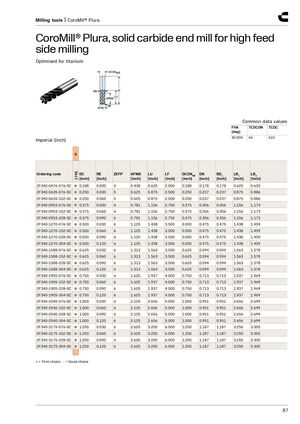

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for high feed side milling​​ Optimised for titanium Common data values FHA TCDCON TCDC [deg] 42.000 h6 h10 Imperial (inch) S 1745 Ordering code DC RE ZEFP APMX LU LF DCONMS DN BD 1 _ LB 1 _ LB 2_ [inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] 2F340-0476-076-SC ● 0.188 0.030 4 0.438 0.625 2.000 0.188 0.178 0.178 0.625 0.633 2F340-0635-076-SC ● 0.250 0.030 5 0.625 0.875 2.500 0.250 0.237 0.237 0.875 0.886 2F340-0635-152-SC ● 0.250 0.060 5 0.625 0.875 2.500 0.250 0.237 0.237 0.875 0.886 2F340-0953-076-SC ● 0.375 0.030 6 0.781 1.156 2.750 0.375 0.356 0.356 1.156 1.173 2F340-0953-152-SC ● 0.375 0.060 6 0.781 1.156 2.750 0.375 0.356 0.356 1.156 1.173 2F340-0953-228-SC ● 0.375 0.090 6 0.781 1.156 2.750 0.375 0.356 0.356 1.156 1.173 2F340-1270-076-SC ● 0.500 0.030 6 1.125 1.438 3.500 0.500 0.475 0.475 1.438 1.459 2F340-1270-152-SC ● 0.500 0.060 6 1.125 1.438 3.500 0.500 0.475 0.475 1.438 1.459 2F340-1270-228-SC ● 0.500 0.090 6 1.125 1.438 3.500 0.500 0.475 0.475 1.438 1.459 2F340-1270-304-SC ● 0.500 0.120 6 1.125 1.438 3.500 0.500 0.475 0.475 1.438 1.459 2F340-1588-076-SC ● 0.625 0.030 6 1.313 1.563 3.500 0.625 0.594 0.594 1.563 1.578 2F340-1588-152-SC ● 0.625 0.060 6 1.313 1.563 3.500 0.625 0.594 0.594 1.563 1.578 2F340-1588-228-SC ● 0.625 0.090 6 1.313 1.563 3.500 0.625 0.594 0.594 1.563 1.578 2F340-1588-304-SC ● 0.625 0.120 6 1.313 1.563 3.500 0.625 0.594 0.594 1.563 1.578 2F340-1905-076-SC ● 0.750 0.030 6 1.625 1.937 4.000 0.750 0.713 0.713 1.937 1.969 2F340-1905-152-SC ● 0.750 0.060 6 1.625 1.937 4.000 0.750 0.713 0.713 1.937 1.969 2F340-1905-228-SC ● 0.750 0.090 6 1.625 1.937 4.000 0.750 0.713 0.713 1.937 1.969 2F340-1905-304-SC ● 0.750 0.120 6 1.625 1.937 4.000 0.750 0.713 0.713 1.937 1.969 2F340-2540-076-SC ● 1.000 0.030 6 2.125 2.656 5.000 1.000 0.951 0.951 2.656 2.699 2F340-2540-152-SC ● 1.000 0.060 6 2.125 2.656 5.000 1.000 0.951 0.951 2.656 2.699 2F340-2540-228-SC ● 1.000 0.090 6 2.125 2.656 5.000 1.000 0.951 0.951 2.656 2.699 2F340-2540-304-SC ● 1.000 0.120 6 2.125 2.656 5.000 1.000 0.951 0.951 2.656 2.699 2F340-3175-076-SC ● 1.250 0.030 6 2.625 3.250 6.000 1.250 1.187 1.187 3.250 3.305 2F340-3175-152-SC ● 1.250 0.060 6 2.625 3.250 6.000 1.250 1.187 1.187 3.250 3.305 2F340-3175-228-SC ● 1.250 0.090 6 2.625 3.250 6.000 1.250 1.187 1.187 3.250 3.305 2F340-3175-304-SC ● 1.250 0.120 6 2.625 3.250 6.000 1.250 1.187 1.187 3.250 3.305 ● = First choice ○ = Good choice 87
