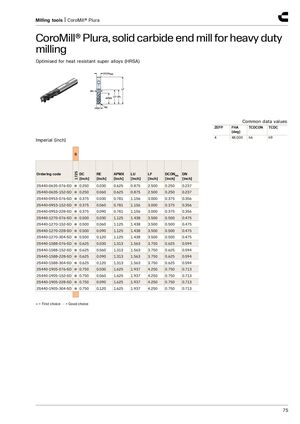

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for heavy duty milling​​ Optimised for heat resistant super alloys (HRSA) Common data values ZEFP FHA TCDCON TCDC [deg] 4 48.000 h6 h9 Imperial (inch) S 1725 Ordering code DC RE APMX LU LF DCONMS DN [inch] [inch] [inch] [inch] [inch] [inch] [inch] 2S440-0635-076-SD ● 0.250 0.030 0.625 0.875 2.500 0.250 0.237 2S440-0635-152-SD ● 0.250 0.060 0.625 0.875 2.500 0.250 0.237 2S440-0953-076-SD ● 0.375 0.030 0.781 1.156 3.000 0.375 0.356 2S440-0953-152-SD ● 0.375 0.060 0.781 1.156 3.000 0.375 0.356 2S440-0953-228-SD ● 0.375 0.090 0.781 1.156 3.000 0.375 0.356 2S440-1270-076-SD ● 0.500 0.030 1.125 1.438 3.500 0.500 0.475 2S440-1270-152-SD ● 0.500 0.060 1.125 1.438 3.500 0.500 0.475 2S440-1270-228-SD ● 0.500 0.090 1.125 1.438 3.500 0.500 0.475 2S440-1270-304-SD ● 0.500 0.120 1.125 1.438 3.500 0.500 0.475 2S440-1588-076-SD ● 0.625 0.030 1.313 1.563 3.750 0.625 0.594 2S440-1588-152-SD ● 0.625 0.060 1.313 1.563 3.750 0.625 0.594 2S440-1588-228-SD ● 0.625 0.090 1.313 1.563 3.750 0.625 0.594 2S440-1588-304-SD ● 0.625 0.120 1.313 1.563 3.750 0.625 0.594 2S440-1905-076-SD ● 0.750 0.030 1.625 1.937 4.250 0.750 0.713 2S440-1905-152-SD ● 0.750 0.060 1.625 1.937 4.250 0.750 0.713 2S440-1905-228-SD ● 0.750 0.090 1.625 1.937 4.250 0.750 0.713 2S440-1905-304-SD ● 0.750 0.120 1.625 1.937 4.250 0.750 0.713 ● = First choice ○ = Good choice 75
