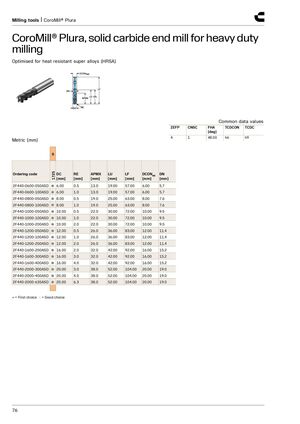

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for heavy duty milling​​ Optimised for heat resistant super alloys (HRSA) Common data values ZEFP CNSC FHA TCDCON TCDC [deg] 4 1 48.00 h6 h9 Metric (mm) S 1725 Ordering code DC RE APMX LU LF DCONMS DN [mm] [mm] [mm] [mm] [mm] [mm] [mm] 2F440-0600-050ASD ● 6.00 0.5 13.0 19.00 57.00 6.00 5.7 2F440-0600-100ASD ● 6.00 1.0 13.0 19.00 57.00 6.00 5.7 2F440-0800-050ASD ● 8.00 0.5 19.0 25.00 63.00 8.00 7.6 2F440-0800-100ASD ● 8.00 1.0 19.0 25.00 63.00 8.00 7.6 2F440-1000-050ASD ● 10.00 0.5 22.0 30.00 72.00 10.00 9.5 2F440-1000-100ASD ● 10.00 1.0 22.0 30.00 72.00 10.00 9.5 2F440-1000-200ASD ● 10.00 2.0 22.0 30.00 72.00 10.00 9.5 2F440-1200-050ASD ● 12.00 0.5 26.0 36.00 83.00 12.00 11.4 2F440-1200-100ASD ● 12.00 1.0 26.0 36.00 83.00 12.00 11.4 2F440-1200-200ASD ● 12.00 2.0 26.0 36.00 83.00 12.00 11.4 2F440-1600-200ASD ● 16.00 2.0 32.0 42.00 92.00 16.00 15.2 2F440-1600-300ASD ● 16.00 3.0 32.0 42.00 92.00 16.00 15.2 2F440-1600-400ASD ● 16.00 4.0 32.0 42.00 92.00 16.00 15.2 2F440-2000-300ASD ● 20.00 3.0 38.0 52.00 104.00 20.00 19.0 2F440-2000-400ASD ● 20.00 4.0 38.0 52.00 104.00 20.00 19.0 2F440-2000-635ASD ● 20.00 6.3 38.0 52.00 104.00 20.00 19.0 ● = First choice ○ = Good choice 76
