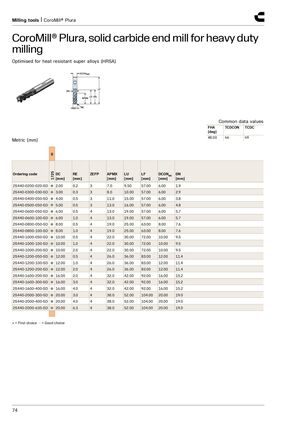

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for heavy duty milling​​ Optimised for heat resistant super alloys (HRSA) Common data values FHA TCDCON TCDC [deg] 48.00 h6 h9 Metric (mm) S 1725 Ordering code DC RE ZEFP APMX LU LF DCONMS DN [mm] [mm] [mm] [mm] [mm] [mm] [mm] 2S440-0200-020-SD ● 2.00 0.2 3 7.0 9.50 57.00 6.00 1.9 2S440-0300-030-SD ● 3.00 0.3 3 8.0 10.00 57.00 6.00 2.9 2S440-0400-050-SD ● 4.00 0.5 3 11.0 15.00 57.00 6.00 3.8 2S440-0500-050-SD ● 5.00 0.5 3 13.0 16.00 57.00 6.00 4.8 2S440-0600-050-SD ● 6.00 0.5 4 13.0 19.00 57.00 6.00 5.7 2S440-0600-100-SD ● 6.00 1.0 4 13.0 19.00 57.00 6.00 5.7 2S440-0800-050-SD ● 8.00 0.5 4 19.0 25.00 63.00 8.00 7.6 2S440-0800-100-SD ● 8.00 1.0 4 19.0 25.00 63.00 8.00 7.6 2S440-1000-050-SD ● 10.00 0.5 4 22.0 30.00 72.00 10.00 9.5 2S440-1000-100-SD ● 10.00 1.0 4 22.0 30.00 72.00 10.00 9.5 2S440-1000-200-SD ● 10.00 2.0 4 22.0 30.00 72.00 10.00 9.5 2S440-1200-050-SD ● 12.00 0.5 4 26.0 36.00 83.00 12.00 11.4 2S440-1200-100-SD ● 12.00 1.0 4 26.0 36.00 83.00 12.00 11.4 2S440-1200-200-SD ● 12.00 2.0 4 26.0 36.00 83.00 12.00 11.4 2S440-1600-200-SD ● 16.00 2.0 4 32.0 42.00 92.00 16.00 15.2 2S440-1600-300-SD ● 16.00 3.0 4 32.0 42.00 92.00 16.00 15.2 2S440-1600-400-SD ● 16.00 4.0 4 32.0 42.00 92.00 16.00 15.2 2S440-2000-300-SD ● 20.00 3.0 4 38.0 52.00 104.00 20.00 19.0 2S440-2000-400-SD ● 20.00 4.0 4 38.0 52.00 104.00 20.00 19.0 2S440-2000-635-SD ● 20.00 6.3 4 38.0 52.00 104.00 20.00 19.0 ● = First choice ○ = Good choice 74
